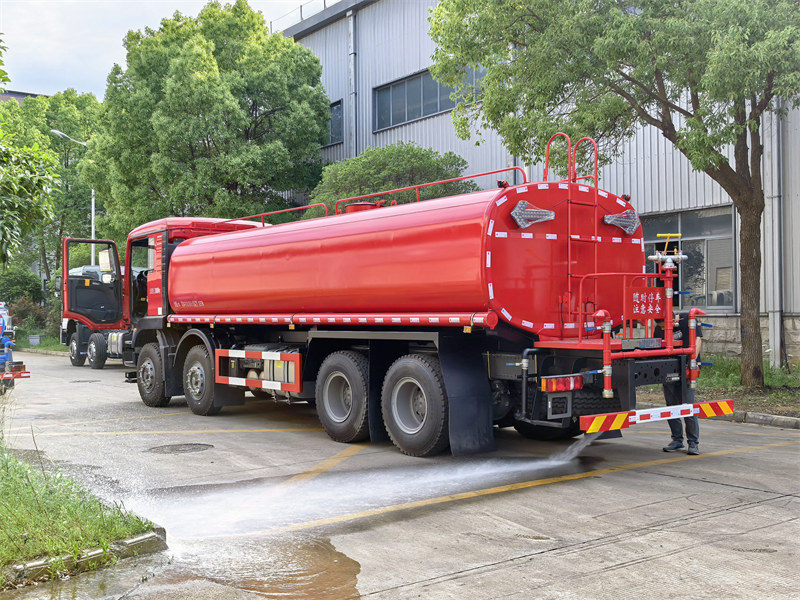

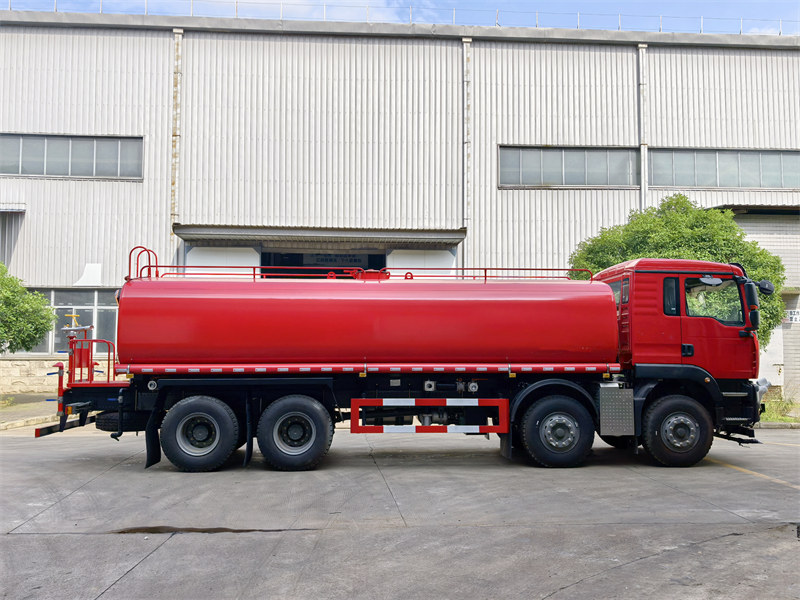

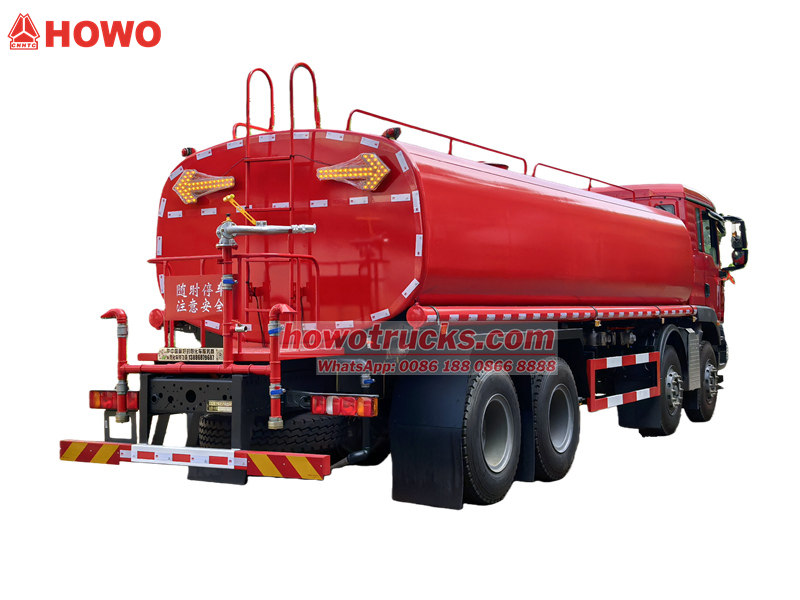

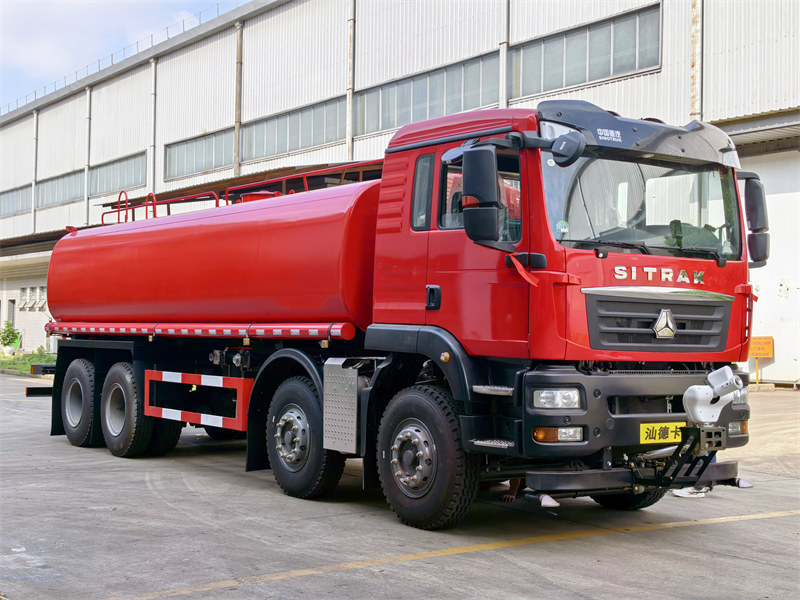

The HOWO TX 8x4 towable water bowser with sprinkler is a high-performance, multi-functional dust control and water spraying solution tailor-built for harsh and complex urban operating conditions. Primarily designed to eliminate dust pollution generated during city transportation processes, this versatile vehicle also efficiently covers on-site road cleaning, equipment cooling and other auxiliary operational demands, serving as an all-in-one workhorse for city site maintenance.
작업 능력 :
20000 liters객실 유형 :
HOWO single cabin with sleeper and A/C구동 시스템 :
6×4휠베이스(mm) :
11300*2580*3250 mm엔진별 :
371HP/WD615.47기어박스 :
HW19710, 10 Forward & 2Reverse앞 차축 (kg) :
7.5T뒷축 (kg) :
13 T*2The HOWO TX 8x4 towable water bowser with sprinkler is a high-performance, multi-functional dust control and water spraying solution tailor-built for harsh and complex urban operating conditions. Primarily designed to eliminate dust pollution generated during city transportation processes, this versatile vehicle also efficiently covers on-site road cleaning, equipment cooling and other auxiliary operational demands, serving as an all-in-one workhorse for city site maintenance.
Built on a heavy-duty 8×4 drive chassis, this tanker outperforms standard sanitation sprinkler trucks by a significant margin in cross-country capability and heavy-load stability, delivering reliable performance on rough, uneven roads. Fitted with a large 20,000-liter water tank and a full set of integrated spraying systems, it supports comprehensive, multi-scenario spraying and dust suppression operations. It is a must-have heavy-duty specialized vehicle for professional city environmental protection and site management.
CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: Howo heavy truck chassis, 8X4 or 8x8 model
Wd model with 350HP and Euro 2,3,4,5
2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose
3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
Optional famous Imported pump
|

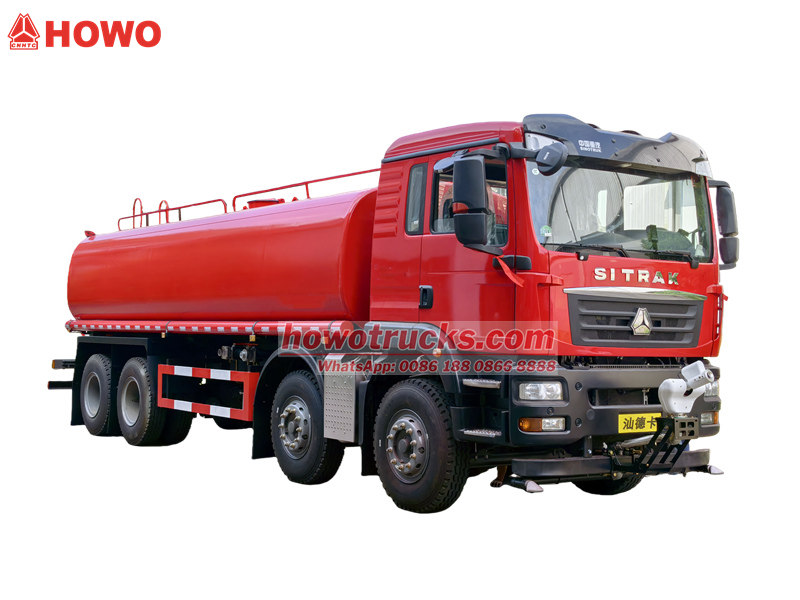

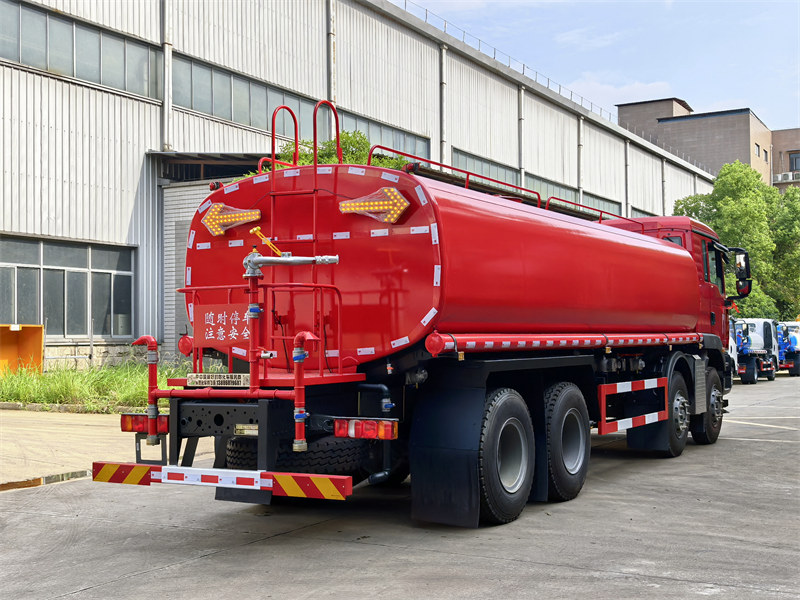

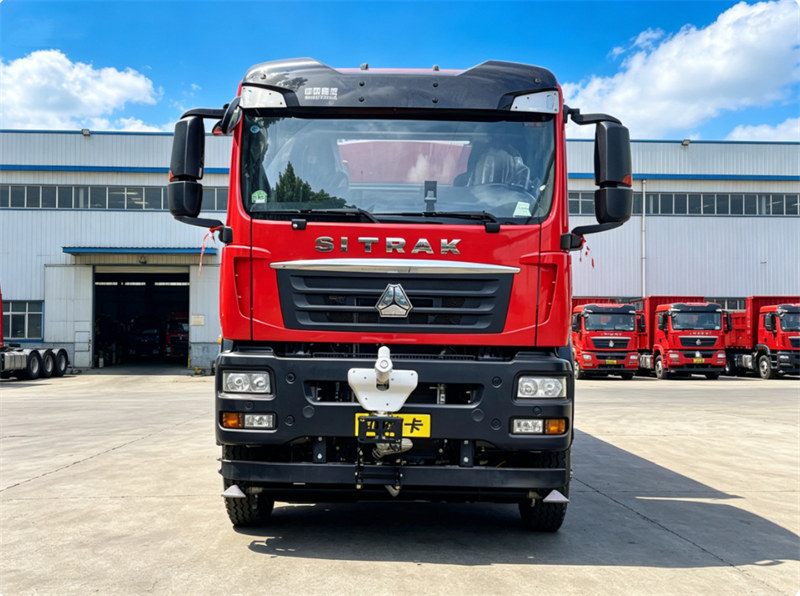

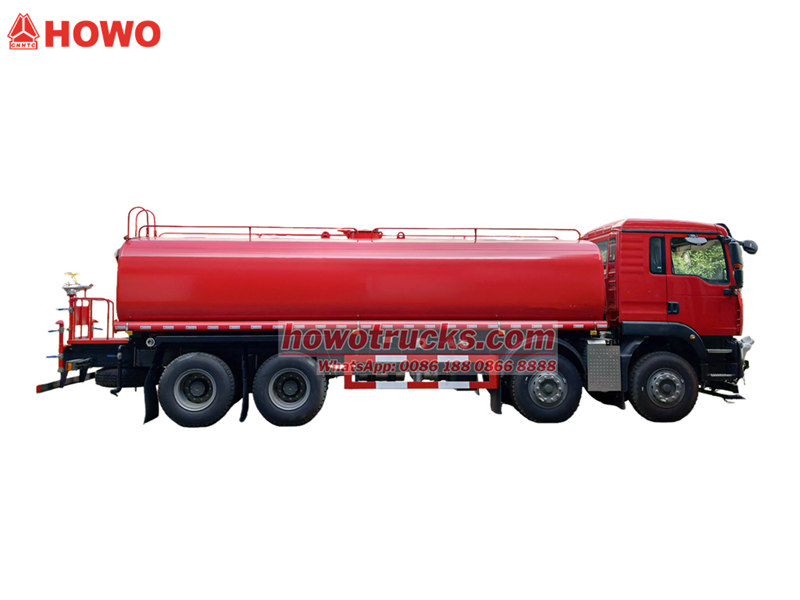

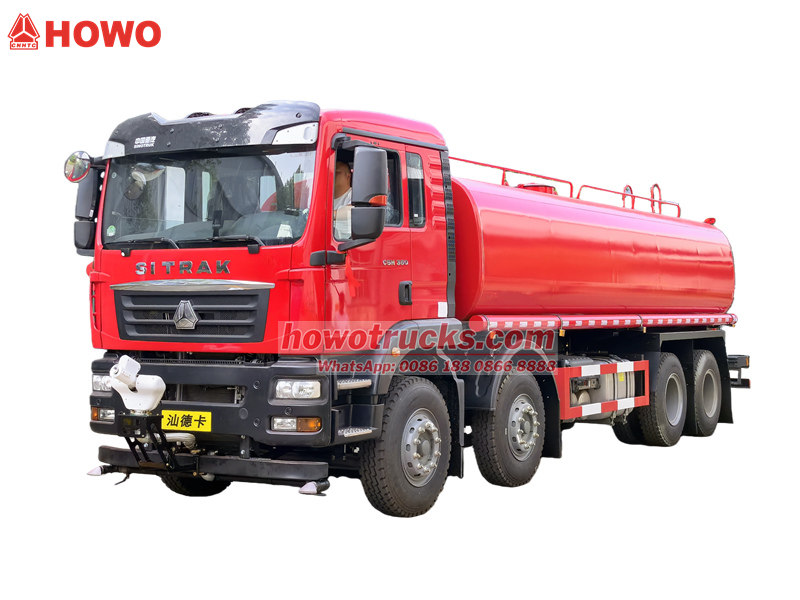

HOWO TX 8x4 20000L Water Tank Truck |
|||
|
Main parameter |
Overall dimension(LxWxH) |
13300*2580*3350 mm |
|
|
Wheel base(mm) |
1750+4600+1350 mm |
||
|
Driving Type |
8×4,left hand drive |
||
|
Color |
White,blue,green,color can choose |
||
|
Front/rear overhang |
1535/2215 |
||
|
Max speed |
100 km/h |
||
|
Weight in KGS |
GVW |
28000 kg |
|
|
Curb weight |
11500 kg |
||
|
Loading capacity |
20 tons |
||
|
Front axles loading capacity |
7.5T*2 |
||
|
Rear axles loading capacity |
13 T*2 |
||
|
Engine |
Engine model |
WP8.350E62 |
|
|
Engine type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
||
|
Horsepower |
350 HP |
||
|
Max. output (kw) |
257 Kw |
||
|
Rated speed |
1600rpm |
||
|
Maximum Torque |
1400N.m |
||
|
Displacement(L) |
7.8 L |
||
|
Emission standard |
Euro 3 |
||
|
Transmission |
HW19710,10 forward ,2 reserve |
||
|
Tire |
12.00R20 standard tire,10 tires+1 spare tire |
||
|
Brake |
Air brake |
||
|
Steering |
Power steering |
||
|
Body |
Capacity |
20000L |
|
|
Structure |
TANK MATERAIL |
6mm,Q235 stee |
|
|
Pipe |
Galvanized pipe |
||
|
Discharge nozzle |
SS,at side bottom of tank,quick coupling |
||
|
Discharge nozzle option |
Stainless steel faucet |
||
|
Water pump |
Model |
WEILONG 80QZF-60/90S pump |
|
|
Flow rate(L/m): |
60m3/h |
||
|
Head of delivery(m) |
90m |
||
|
Self-priming function(min/4m) |
1.5 |
||
|
Efficiency(%) |
95% |
||
|
Related rotate speed(r/min) |
1180 |
||
|
Matched power(kw) |
22 |
||
|
Water sprinkler system |
Front sprinkler jet |
14m |
|
|
Rear sprinkler jet |
13m |
||
|
Rear sprinkler nozzle range |
12m |
||
|
Water cannon range |
45m |
||
|
Water time |
＞5 minutes |
||
|
Working condition |
Flow≥60L/m, 1.55Mpa |
||
|
Max working pressure |
≥0.9Mpa |
||
1. Robust & Dependable Powertrain:
♦ Fitted with WP8.350E62 inline-six 4-stroke turbo intercooled water-cooled diesel engine.
♦ Peak output: 257kW (350HP),max torque: 1400N·m, delivering abundant reserve power.
♦ Paired with HW19710 transmission (10 forward + 2 reverse speeds) for seamless shifts and superior drive efficiency.
♦ This vehicle speed is tunable for long-haul transit or short-range onsite spraying to optimize productivity and fuel savings.
2. High-Efficiency Full-Function Operation System:

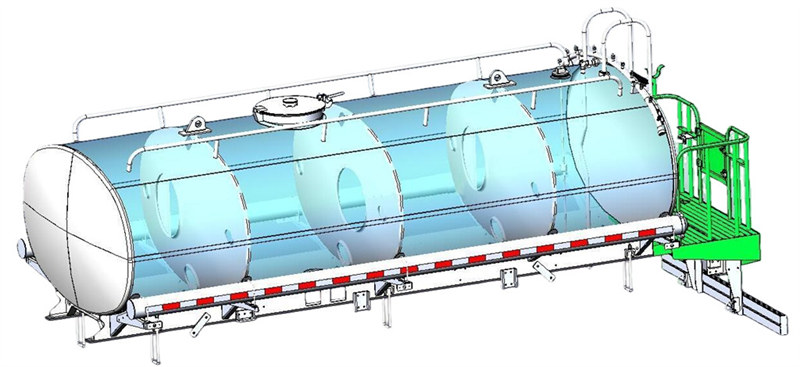

♦ Features a 20,000L elliptical tank fabricated from 6mm Q235 steel for superior structural strength, anti-collision and anti-corrosion performance against mine rubble abrasion.
♦ Internal baffles suppress liquid surging to boost driving stability.
♦ Comes with WEILONG 80QZF-60/90S water pump: max flow 60m³/h, lift 50m, self-priming in 1.5min per 4m³, supporting fast large-scale dust suppression.

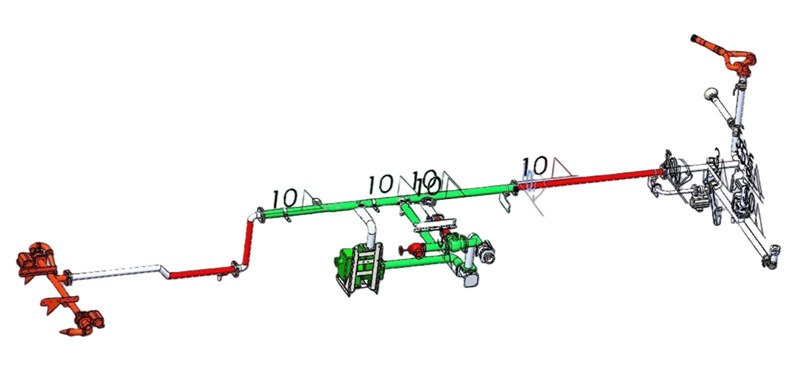

3.All-Round Spraying Configuration:

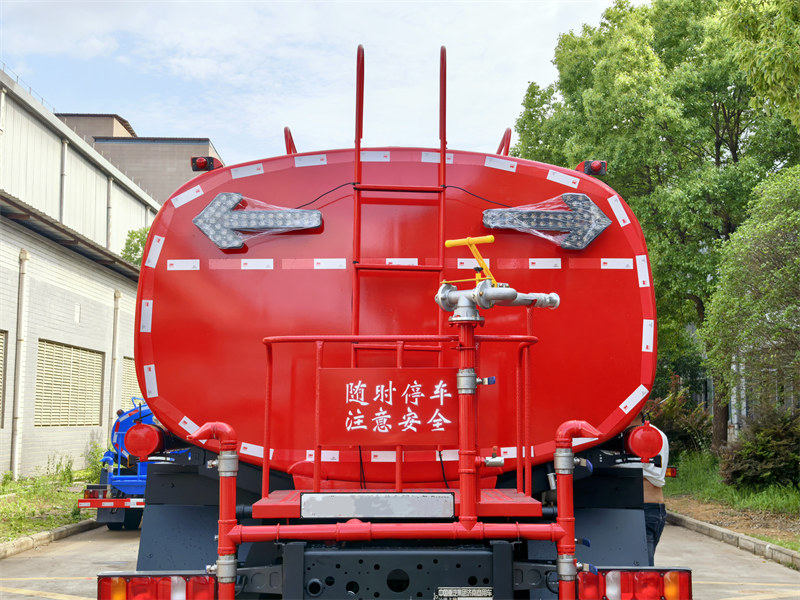

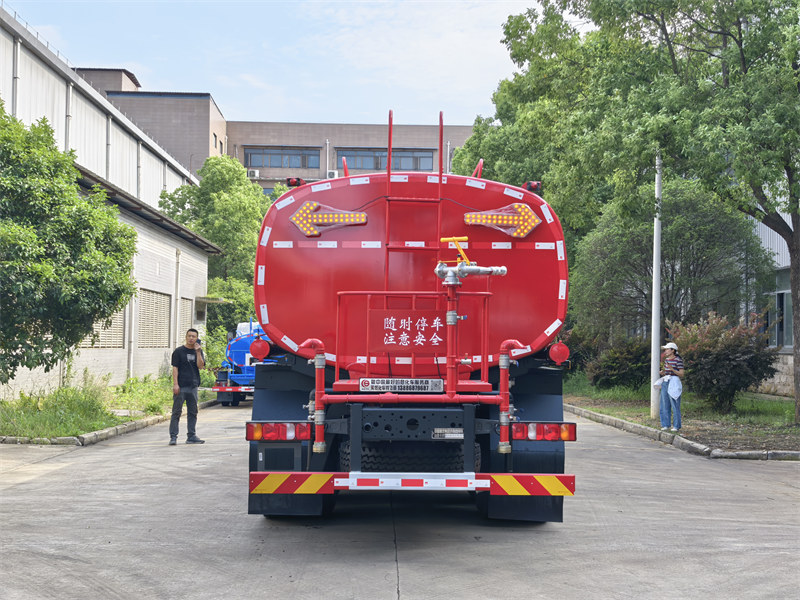

♦ Outfitted with front/rear spray nozzles, high-pressure water cannon and rear operating platform for full-coverage dust control with zero blind spots.
♦ Front spray: 14m | Rear spray:13m | Rear nozzle:12m | Water cannon: max 45m
♦ Suits large-scale city road dust suppression and targeted equipment washing.
♦ Option galvanized pipelines plus stainless steel nozzles feature superb wear & corrosion resistance against mine dust to prolong service lifespan.
♦ Equipped with front and rear spray nozzles, a water cannon, and a rear-mounted work platform, forming all-around operational coverage.

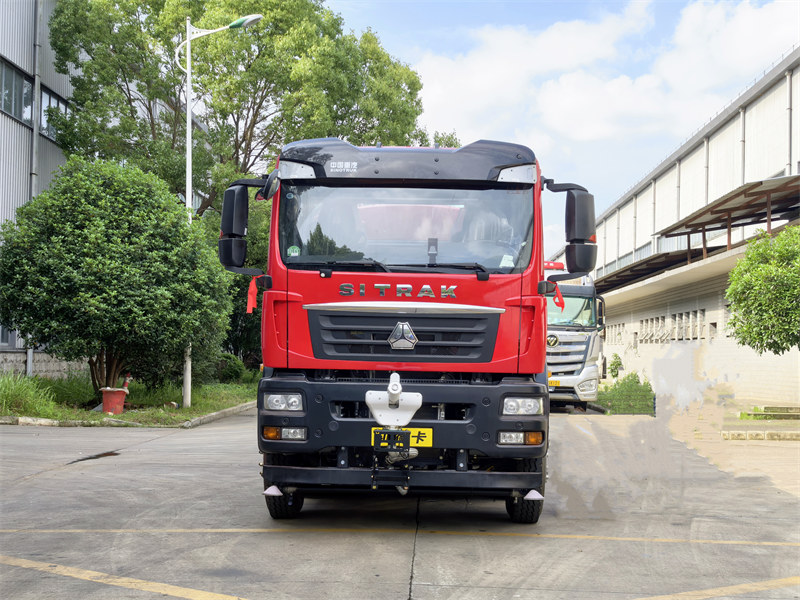

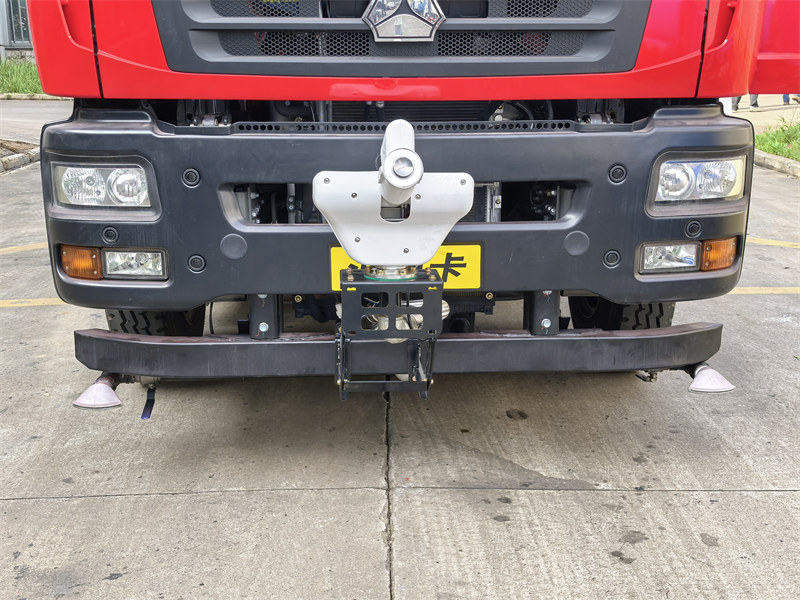

♦ The front spray nozzles have a spray distance of up to 14m, quickly washing away road stains and mud, achieving full road surface washing.
♦ The rear spray nozzles have a spray distance of 13m, and combined with the 12m coverage of the rear spray nozzles, they can perform secondary cleaning of the road surface, avoiding any omissions.
♦ The water cannon has a spray distance of up to 45m, and the spray angle and water volume can be flexibly adjusted, enabling both high-altitude dust suppression and washing of green belts and high-altitude facilities.
♦ WEILONG water pumps offer advantages such as strong self-priming capability and high head, enabling rapid water filling and reducing waiting time. They also provide stable water delivery, preventing leaks and insufficient pressure, ensuring continuous operation.
♦ Furthermore, the piping is galvanized, the discharge nozzle is stainless steel, and quick-connect fittings are included. Optional stainless steel faucets are also available. These features enhance corrosion resistance and ease of maintenance, further extending the lifespan of the operating system.
|
Model |
Flow rate (m³/h) |
Head (m) |
Speed (r/min) |
Shaft power (KW) |
NPSHr (m) |
Self-priming time (min/4m) |
Efficiency (%) |
|
80QZBF-60/90N(S) |
60 |
90 |
1180 |
22.5 |
4.5 |
1.5 |
70 |
|
65QZ-40/45N(S) |
40 |
45 |
1450 |
9.25 |
4.5 |
1.5 |
72 |
|
65QZ-50/50N |
50 |
50 |
1180 |
10.5 |
4.5 |
1.5 |
70 |
|
65QZBF-50/110N(S) |
50 |
110 |
1450 |
24 |
- |
- |
70 |
1. Urban Road Sanitation Operations:
Daily watering, dust suppression, and washing of large areas of urban main and secondary roads, industrial park roads, and city squares. Especially suitable for densely populated areas with high traffic volume, this equipment is a core component for urban air pollution control and road cleaning.
2. Landscaping and Green Space Maintenance Operations:
Irrigation and watering operations in urban parks, green belts, large nurseries, and green belts along highways, as well as spraying for pest and disease control of green plants.
