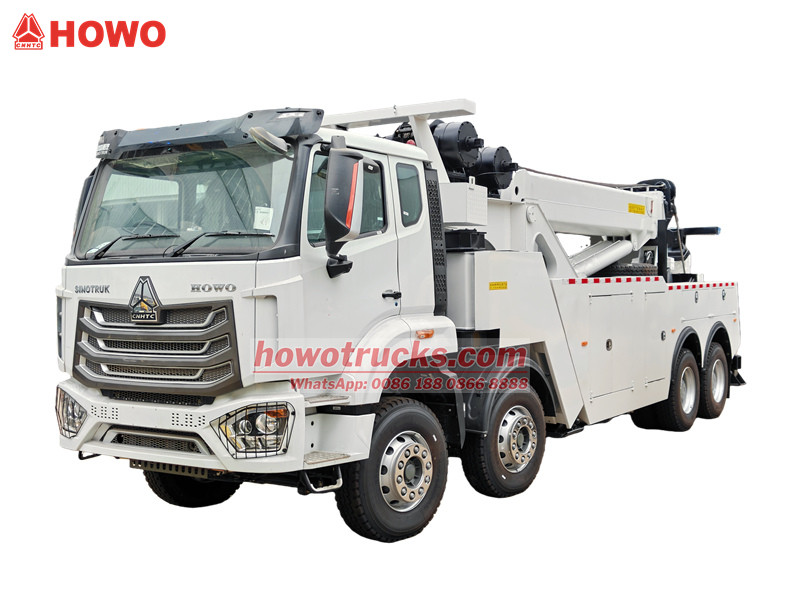

HOWO 40 ton road rescue wrekcer truck

HOWO NX 40 ton road rescue wrekcer truck

HOWO 370HP 40tons road rescue wrekcer truck

HOWO 40 ton road rescue wrekcer truck

Built on a Sinotruk HOWO NX 8x4 heavy chassis, this professional rescue wrecker runs on a 370HP WD615.47 diesel engine paired with a 10-speed HW19710 transmission. Fitted with a 7.5 ton front axle and 16-ton rear axle, it delivers unmatched hauling strength and long-term durability.Outfitted with dual 12 ton hydraulic winches and heavy duty hydraulic outriggers (10.5 ton single lift capacity), it boasts a maximum 30 ton rated towing load, perfectly suited for recovering crashed semi-trucks, coaches and construction machinery.Complete with a premium HOWO NX luxury cabin, 400L large fuel tank, 24V electric system, full warning strobe light sets and integrated tool storage boxes, this all-in-one heavy rescue tow truck brings powerful performance and full featured reliability for commercial roadside recovery work.

작업 능력 :
25 tons
객실 유형 :
HOWO HW76
치수(mm) :
11400×2500×3300
구동 시스템 :
8×4
휠베이스(mm) :
1800+4600+1350
엔진별 :
370HP/WD615.47
기어박스 :
HW19710
앞 차축 (kg) :
7500*2 kg
뒷축 (kg) :
13000*2 kg
주목 :
HOWO NX, rotator boom, RHD is optional

제품 카테고리

제품 상세 정보
고객 사례

Built on a Sinotruk HOWO NX 8x4 heavy chassis, this professional rescue wrecker runs on a 370HP WD615.47 diesel engine paired with a 10 speed HW19710 transmission. Fitted with a 7.5 ton front axle and 16-ton rear axle, it delivers unmatched hauling strength and long-term durability.

Outfitted with dual 12 ton hydraulic winches and heavy duty hydraulic outriggers (10.5 ton single lift capacity), it boasts a maximum 30 ton rated towing load, perfectly suited for recovering crashed semi-trucks, coaches and construction machinery.Complete with a premium HOWO NX luxury cabin, 400L large fuel tank, 24V electric system, full warning strobe light sets and integrated tool storage boxes, this all-in-one heavy rescue tow truck brings powerful performance and full featured reliability for commercial roadside recovery work.

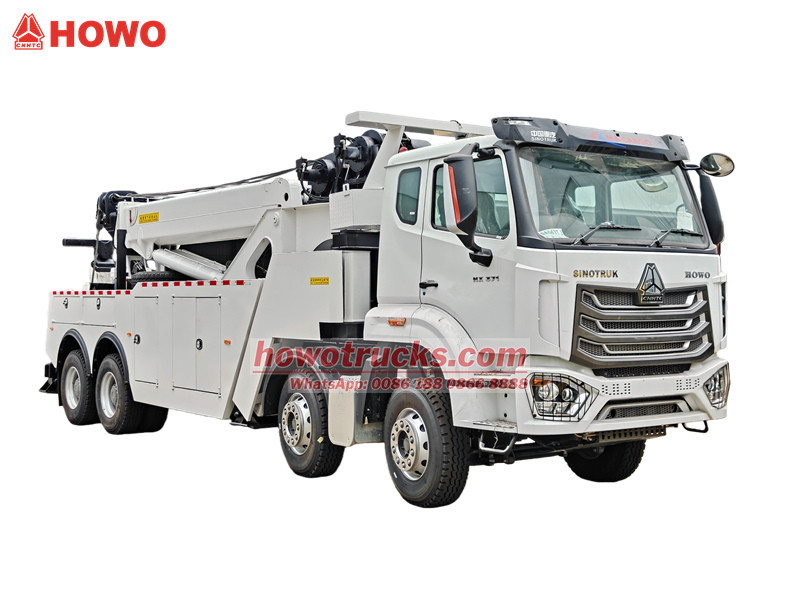

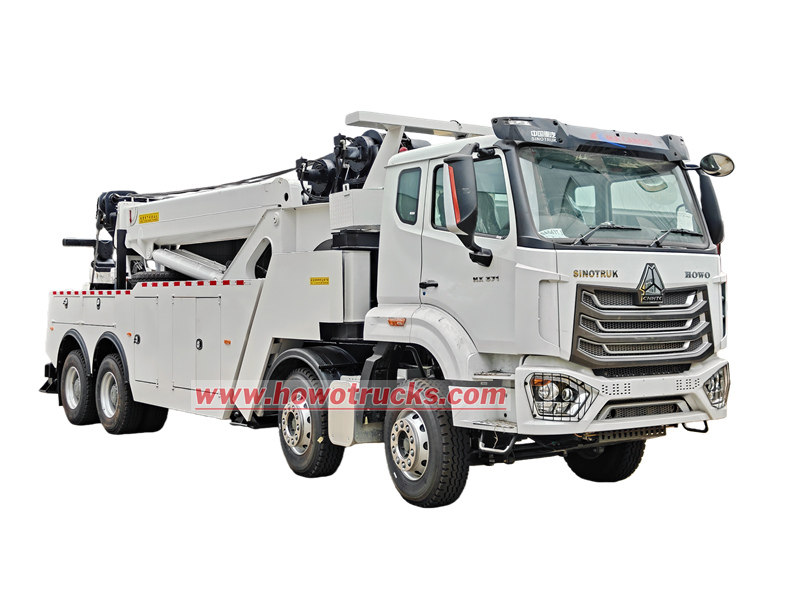

HOWO 40 ton road rescue wrekcer truck

*HOWO 8×4 Heavy-duty Tow Truck

HOWO 12 Wheeler 40 Ton Wrecker Recovery Truck*

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS

Product Features

1. Powerful & Reliable: Built on the HOWO 8x4 heavy duty chassis and equipped with a high-horsepower Weichai engine and 10 gear transmission, it ensures stable operation and reliable performance even under full-load conditions.

2. Integrated & Versatile: Its integrated towing-lifting design combines lifting, supporting, and towing functions, enabling it to independently handle various complex rescue missions and significantly improve operational efficiency.

3. Efficient & Capable: Equipped with boom and a dual winch system that supports coordinated operation, it can swiftly execute rescue tasks such as uprighting overturned vehicles and retrieving ones from deep ditches.

4. Flexible & Adaptive: Featuring a telescopic and luffing boom alongside a multi-directionally adjustable under-lift, it effectively handles stranded vehicles in various positions and postures, adapting to complex on-site environments.

5. Safe & Secure: With scientific axle load distribution and high capacity hydraulic outriggers, it provides a solid and reliable foundation for heavy duty towing operations, ensuring overall worksite safety.

✦Ⅱ. Product Parameter for HOWO 12 Wheeler Tow Truck:

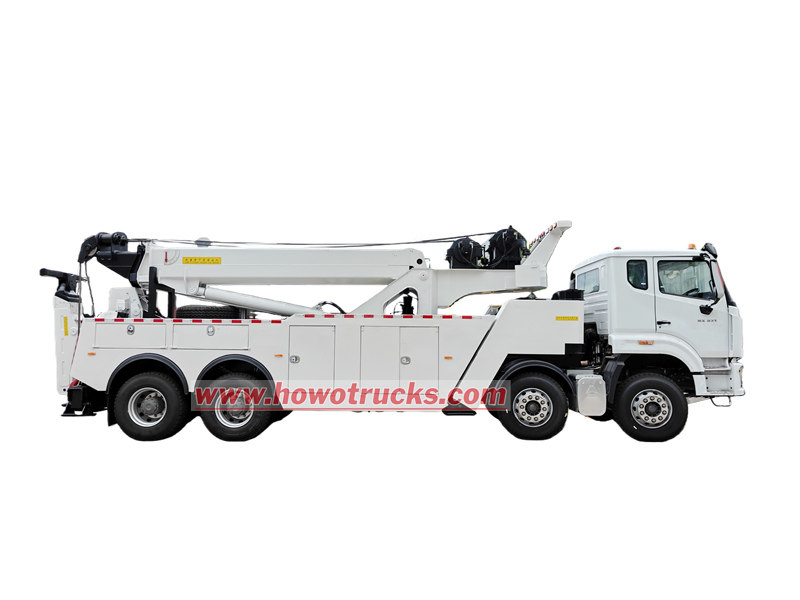

HOWO 40 ton road rescue wrekcer truck

HOWO NX Heavy 40tons Tow Truck
Chassis parameters
Chassis brand		SINOTRUK	Vehicle brand	CS Group
Overall dimensions		10900X2580X3325mm	Wheel base	1750+4300+1350 mm
Approach/departure angle		16/19°	Maximum speed	90km/h
Cab	Configuration	NX a row and a half deluxe cab(with sleeping berth), allowable 2 passengers
	Color	White, other color is optional
Engine	Model	WD615.47
	Emission	Euro 3
	Type	6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
	Rated power	371hp, rated power speed 2200rpm
	Displacement	9.726L
	Max.torque	1400N.m
	Bore x stroke	126x155mm
	Manufacturer	HOWO
Tire	Size	12.00R20
	Number	12+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	400L iron oil tank
Front axle	7.5*2 tons
Rear axle	13*2 tons
Drive form	8X4
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	Gearbox HW19710,10 speed forward 2 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Wrecker structure parameters
Outriggers	Rated Lifting Weight		10500 kg
	Rated Lifting Fully Extended Weight		4500 kg
	Longitudinal Span between Front Outrigger and Rear Outrigger		7350 mm
	Transverse Span of Front Outriggers		5490 mm
	Transverse Span of Rear Outriggers		4387 mm
Rated Towing Weight	18000 kg
Crane Lifting Weight	10000 kg
Length of Cable Wire	25 m
Equipment	High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories

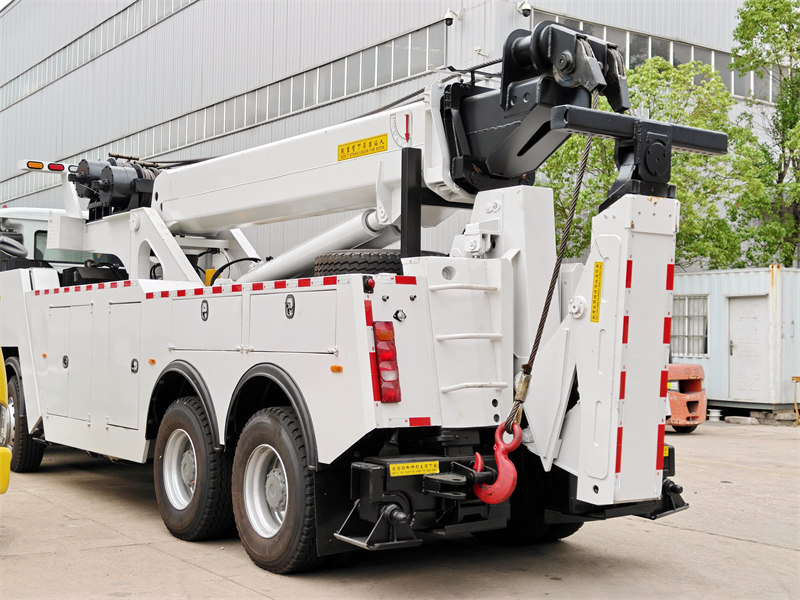

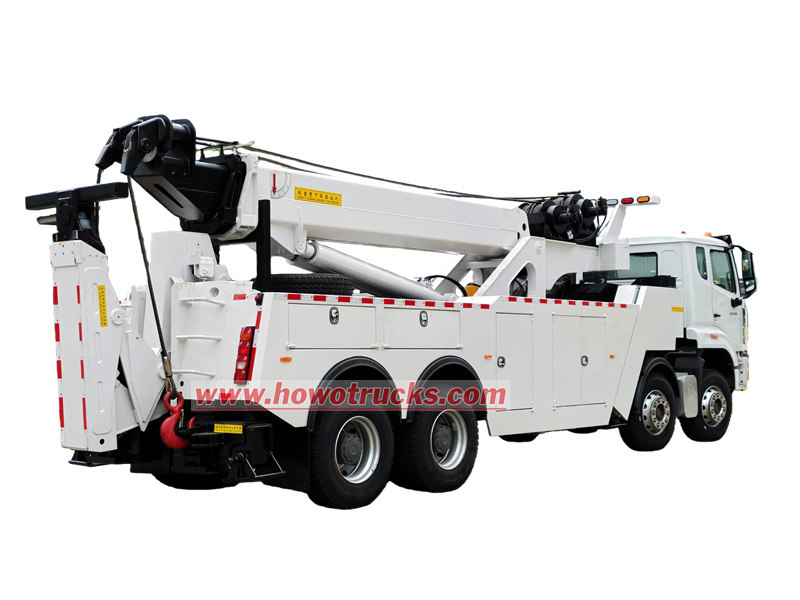

HOWO 8×4 recovery tow truck

✦ Ⅲ. Product Details & Feature:

1. Powerful & Reliable Chassis Powertrain:

♦ Sinotruk HOWO 8x4 drive chassis, 7.5t front + 13t double rear axles

♦ 371hp WD615.47 turbo diesel engine, peak torque 1400N·m

♦ HW19710 10-speed transmission, stable heavy-load output

♦ 400L large fuel tank for long-distance rescue missions

♦ Max speed up to 90km/h, Euro 3 emission standard

2. Heavy-Duty Towing & Lifting Capacity：

♦ Rated towing capacity: 18 tons; max crane lifting load: 10 tons

♦ Dual 15-ton hydraulic winches with 25m long steel cables

♦ Heavy hydraulic outriggers: 10.5t single lift rating, wide support span

♦ Wide longitudinal & transverse outrigger span for stable heavy recovery

♦ Single-stage telescopic lifting arm for flexible wreck handling

3. Comfortable & Fully Equipped Rescue Setup：

♦ NX deluxe half-row cab with sleeper, seats 2 crew, white as standard

♦ 24V DC electrical system, full warning lights & dual floodlights

♦ Power-assisted left-hand steering, 12+1 pcs 12.00R20 heavy tires

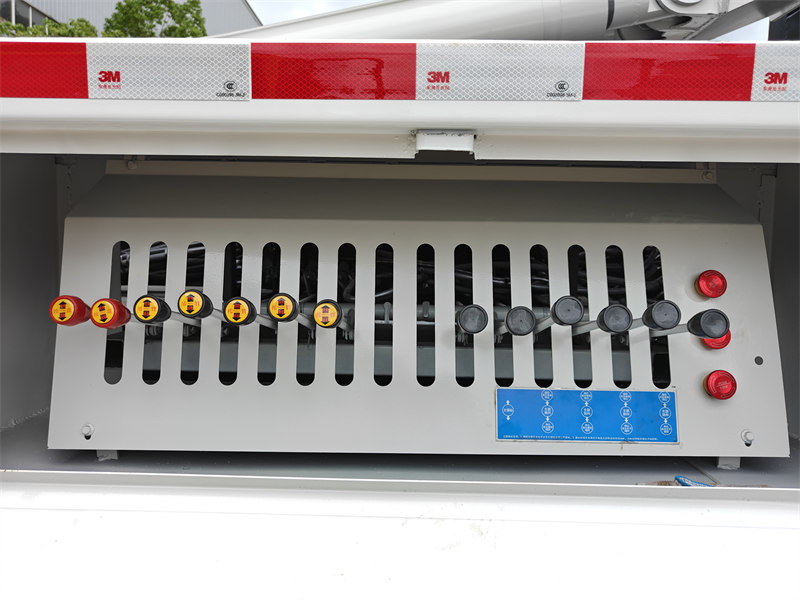

♦ Integrated tool storage box & complete manual control gear

♦ Customizable body color to match your fleet identity

✦ Ⅳ. Product Applications:

1. Disasters or accidents often block roads with debris, wrecked vehicles, etc. The HOWO heavy wrecker truck, with its powerful towing, lifting, and clearing capabilities, can quickly remove heavy obstacles.

2. Hazardous materials vehicle accidents, suspended or unstable heavy vehicles/components, etc., are themselves high-risk sources. The HOWO heavy wrecker truck can safely and efficiently handle and transfer them professionally.

3. Emergency on-site rescue equipment (such as construction machinery and generator trucks), if malfunctioning or stuck, will seriously affect the overall operation. The HOWO NX tow truck has the capability to quickly rescue and transport heavy equipment.

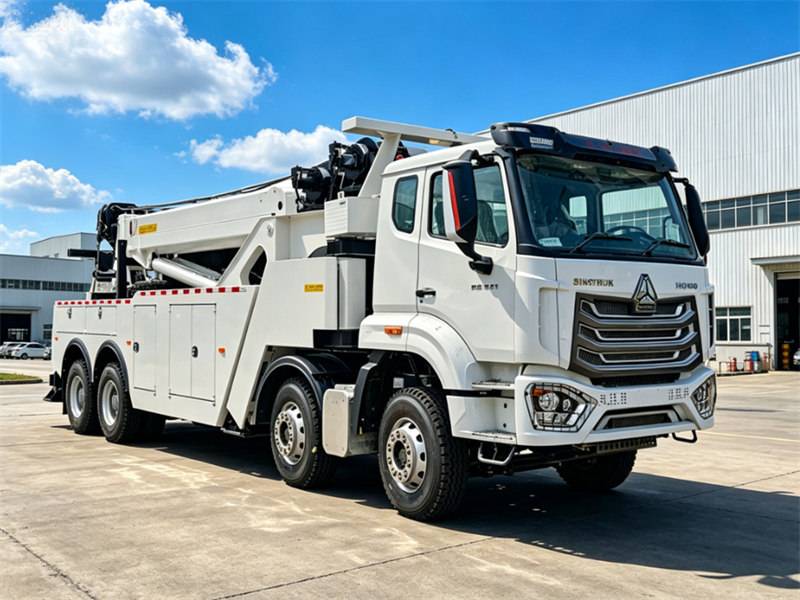

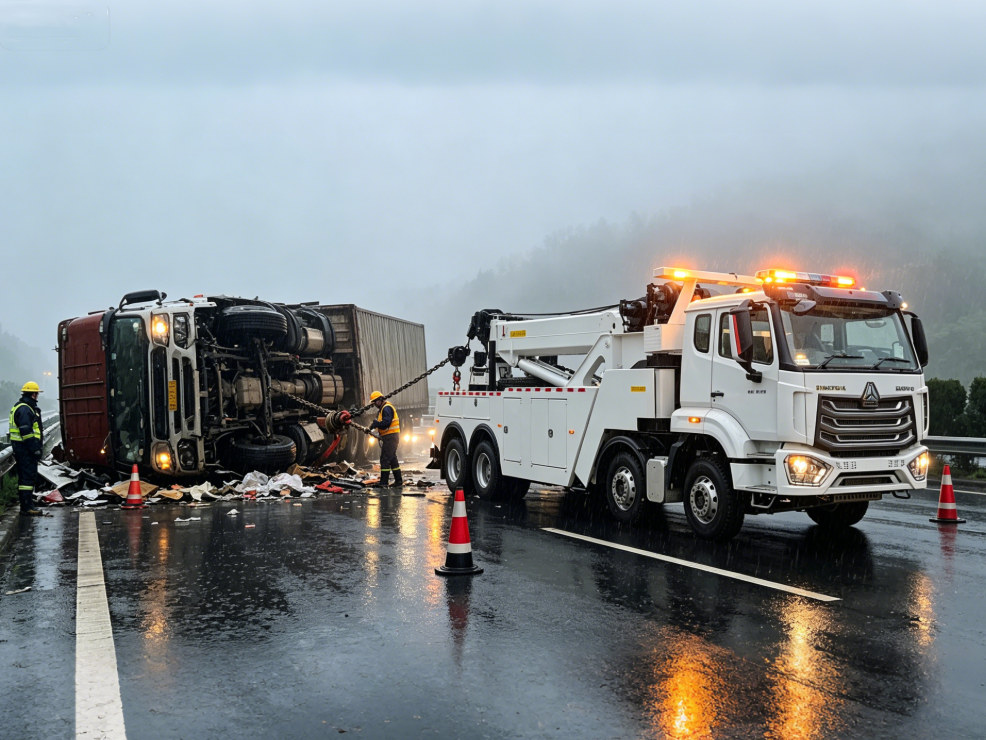

HOWO 12 wheeler heavy recovery truck

◊ Products--100% Customized Level One!

◊ Transportation--100% Safety, Convenience, Efficient!

◊ Services--7days + 24hours Service!

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

Manufactured at our professional heavy-duty vehicle factory, this HOWO 8×4 integrated wrecker truck adopts Sinotruk genuine chassis. We own full CNC machining, hydraulic assembly lines & strict quality inspection systems. Powerful towing & lifting capacity, durable all-terrain design, fully customized for global road rescue business.

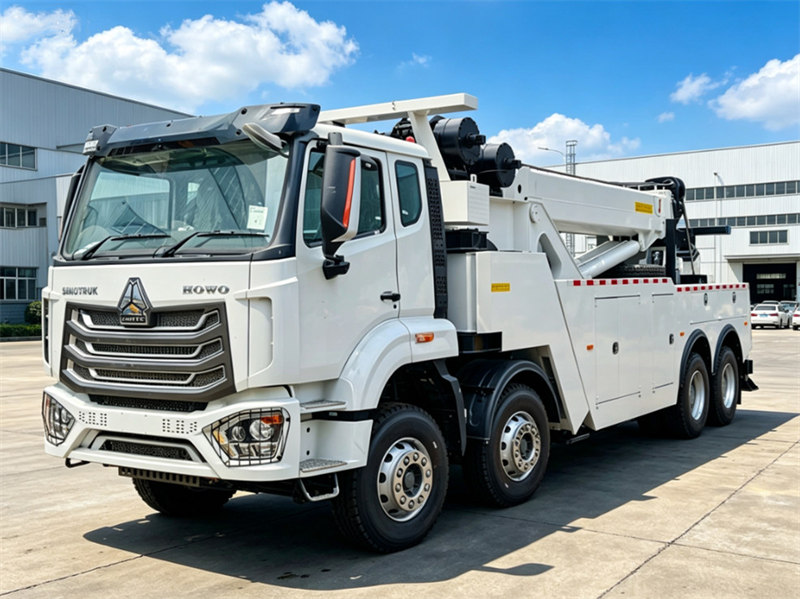

HOWO heavy tow trucks for export

SINOTRUK HOWO 40 ton tow trucks for export

SINOTRUK HOWO recovery trucks ready for delivery

HOWO 중형 견인 트럭

HOWO 8×4 견인 트럭

HOWO 12륜 구난 트럭

HOWO 중장비 견인 트럭

HOWO 40ton recovery truck

HOWO 8×4 도로 복구 트럭
