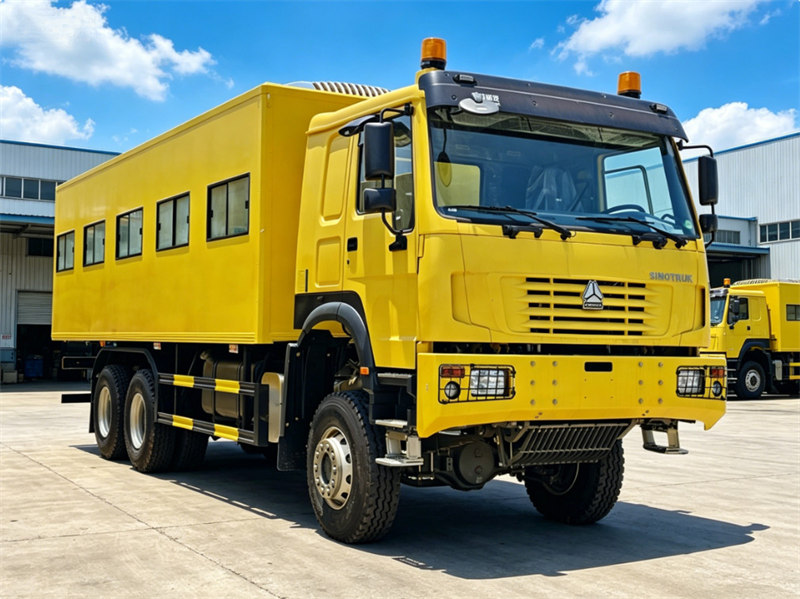

The HOWO Off-Road Troop Carrier Passenger Truck is a leader in military transport, combining advanced technology and combat experience. Built around the classic HOWO 6x6 chassis and WP12S400E201 engine, it's a high-performance, reliable, and durable vehicle. This ISUZU NPR Soldier carrier truck features 6x6 drive, a meticulously designed suspension system, and optimized approach and departure angles, easily handling various complex terrains. A top speed of 105 km/h ensures rapid mobility, while an 8-ton payload capacity meets diverse transport needs.
작업 능력 :
20 tons객실 유형 :
Howo single cabin, with one sleeper구동 시스템 :
6x6휠베이스(mm) :
4600+1350엔진별 :
WP12S400E201기어박스 :
HW19710C, 10 forwards & 2 reverses앞 차축 (kg) :
7500뒷축 (kg) :
13000*2The HOWO Off-Road Troop Carrier Passenger Truck is a leader in military transport, combining advanced technology and combat experience. Built around the classic HOWO 6x6 chassis and WP12S400E201 engine, it's a high-performance, reliable, and durable vehicle. This ISUZU NPR Soldier carrier truck features 6x6 drive, a meticulously designed suspension system, and optimized approach and departure angles, easily handling various complex terrains. A top speed of 105 km/h ensures rapid mobility, while an 8-ton payload capacity meets diverse transport needs.

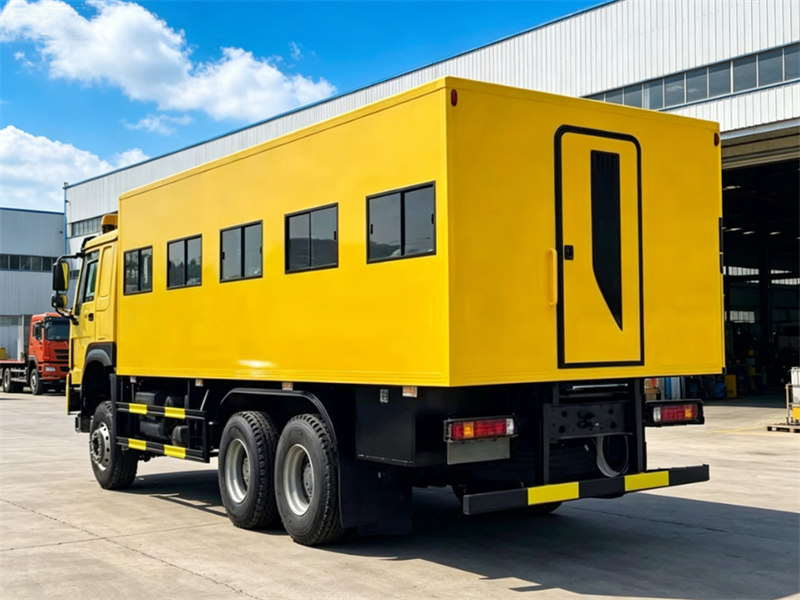

The van utilizes a steel-wood structure, combining strength and lightweight design. The integrated van structure, flexible window design, dedicated seating, and a large air conditioning unit provide a comfortable ride. Safety is a core principle of CS group trucks; the vehicle's structure has been strengthened, the seating layout optimized, and comprehensive safety equipment included.
*HOWO Heavy 6x6 Carrier Lorry Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Howo truck chassis, 4x4,6X6 model，WP model with 400HP and emission 9.8L.
▶ Cargo material: 5mm thick high-quality steel for prolonged service lier carbon steel, aluminum alloy or stainless steel can be choose.
▶ Optional design: Central air conditioning, electric ladders, drones, wireless communication devices, etc.
✦ Ⅱ.Product Parameter For HOWO 6WD Troop Carrier Truck « « «
|

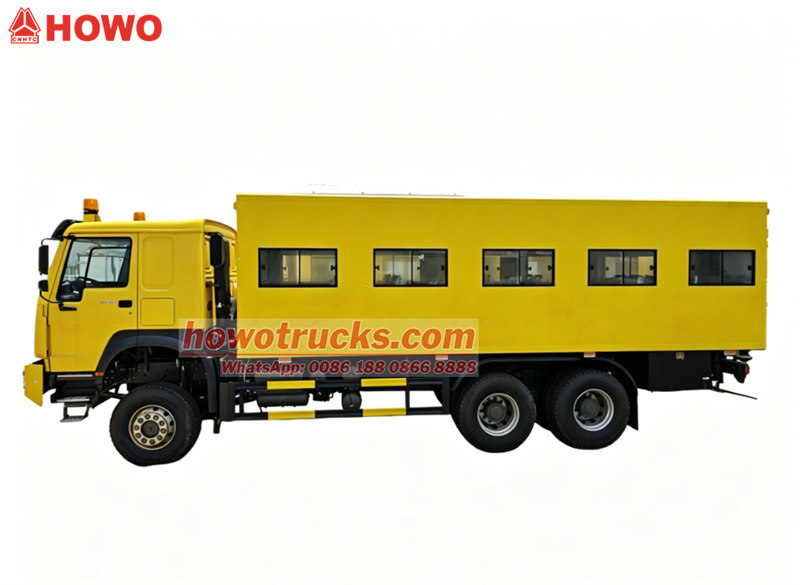

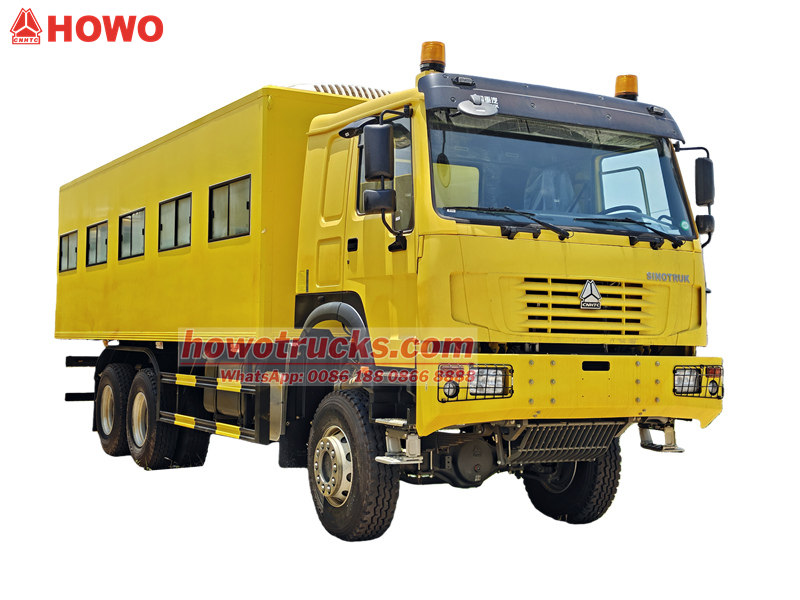

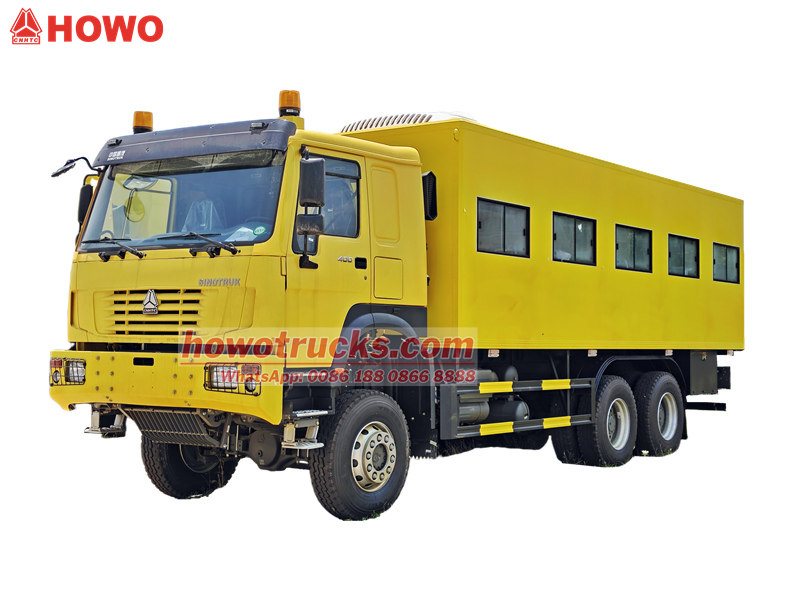

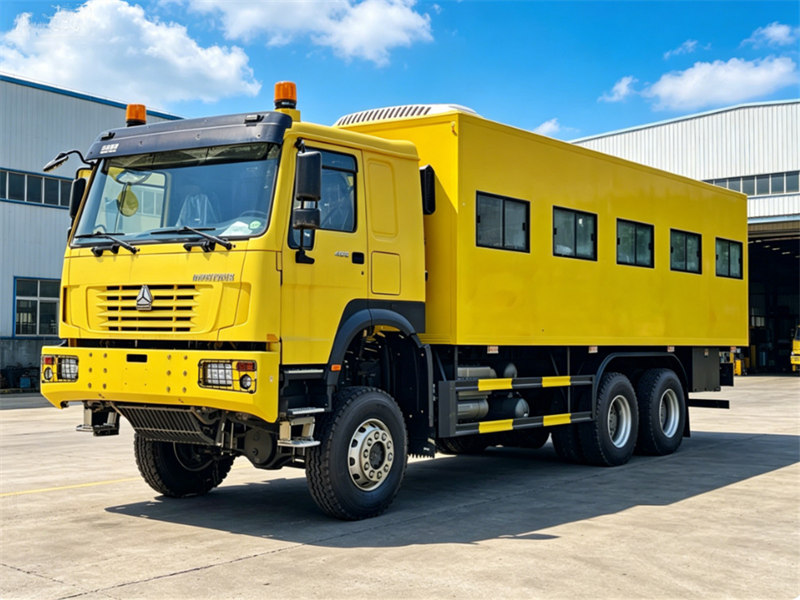

HOWO 6X6 Off Road Troop Carrier Truck |
|||
|
Chassis Parameters |
|||
|
Chassis brand |
HOWO |
Vehicle brand |
CSC522503YBC |
|
Overall dimensions |
9600x2530x3350mm |
Wheel base |
4600+1750 mm |
|
Front/rear wheel track |
1980/2150mm |
Front/rear suspension |
1530/2602mm |
|
Approach/departure angle |
24/17° |
Maximum speed |
110km/h |
|
Engine |
Model |
WP12S400E201 |
|
|
Emission |
Euro 2 |
||
|
Type |
6 cylinders, in-line, diesel engine |
||
|
Rated power |
400 hp |
||
|
Displacement |
11.6L |
||
|
Tire |
Size |
12.00R20 18PR |
|
|
Number |
10+1 nos |
||
|
Front axle |
7.5 tons |
||
|
Rear axle |
13*2 tons |
||
|
Drive form |
6X6 |
||
|
Van Body Structure Parameters |
|||
|
Van Dimensions |
6800x2530x1900 mm |
||
|
Van Material |
High quality steel , wooden and aluminum |
||
|
Loading Capacity |
18000 kg |
||
|
Central AC Temperature |
16℃- 28℃ |
||
|
Standard configuration |
Chassis,sub frame,Common steel and wooden van body. Bule trap with windows and rear door, Foldable chairs. |
||
✦ Ⅲ.Advantage For HOWO 6x6 Troop Carrier Truck« « «

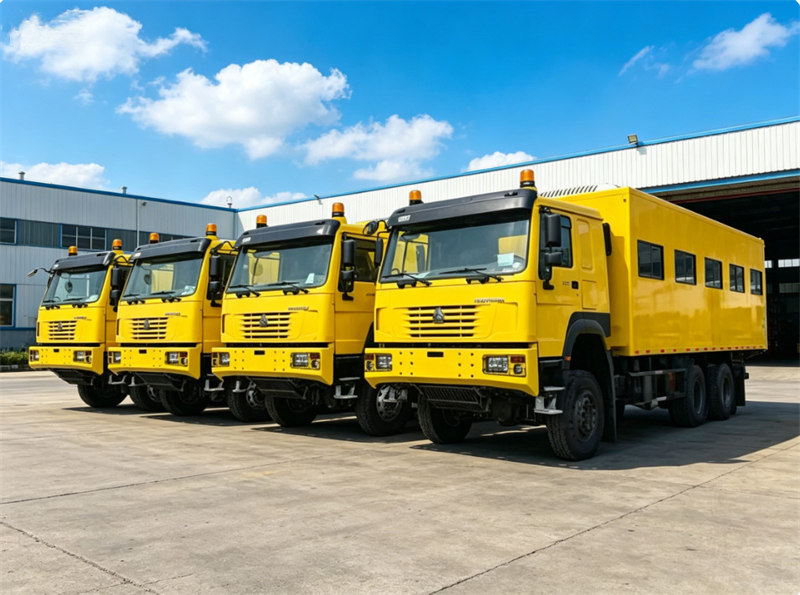

1. Full 6×6 All-Wheel-Drive Heavy-Duty Chassis
♦ The truck adopts genuine HOWO 6×6 all-wheel drive chassis with 7.5-ton front axle and dual 13-ton rear axles, paired with heavy-duty 12.00R20 18PR off-road tires.
♦ Equipped with a 400hp WP12S400E201 inline 6-cylinder diesel engine, it delivers strong low-torque output for harsh unpaved, muddy, mountainous or remote construction sites.
♦ With 24° approach angle and 17° departure angle, long 4600+1750mm wheelbase and reinforced suspension system, the vehicle easily conquers uneven rugged terrains where ordinary 4×2/6×4 trucks get stuck.
♦ The maximum 110km/h top speed also ensures efficient long-distance troop transit on flat paved roads, balancing off-road capability and highway transport efficiency perfectly.
2. Spacious, Durable Custom Passenger Van Body

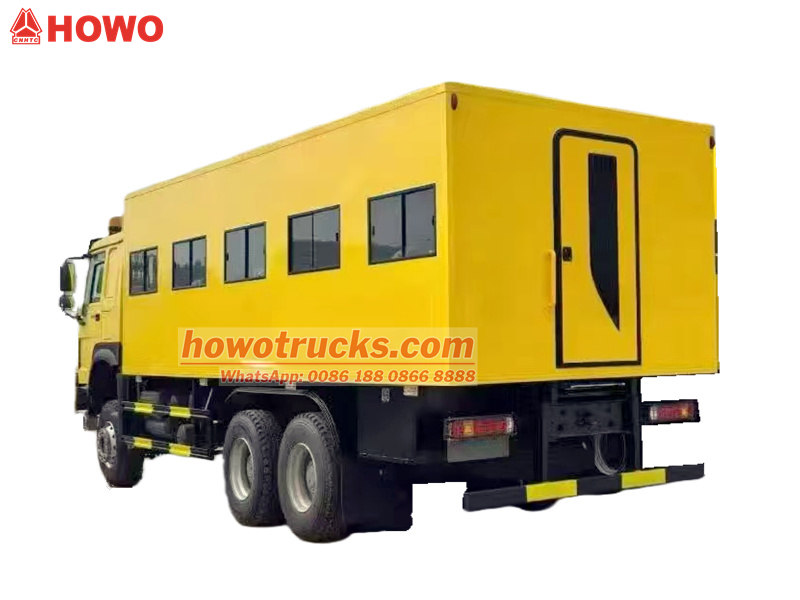

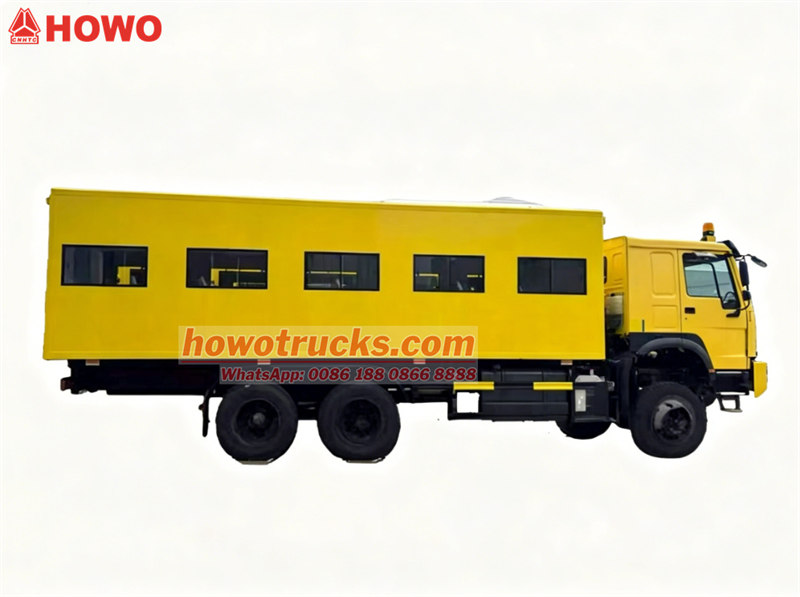

♦ The closed passenger compartment measures 6800×2530×1900mm, constructed with integrated high-strength steel, wood and aluminum composite panels for anti-corrosion, impact resistance and long service life under all weather conditions.

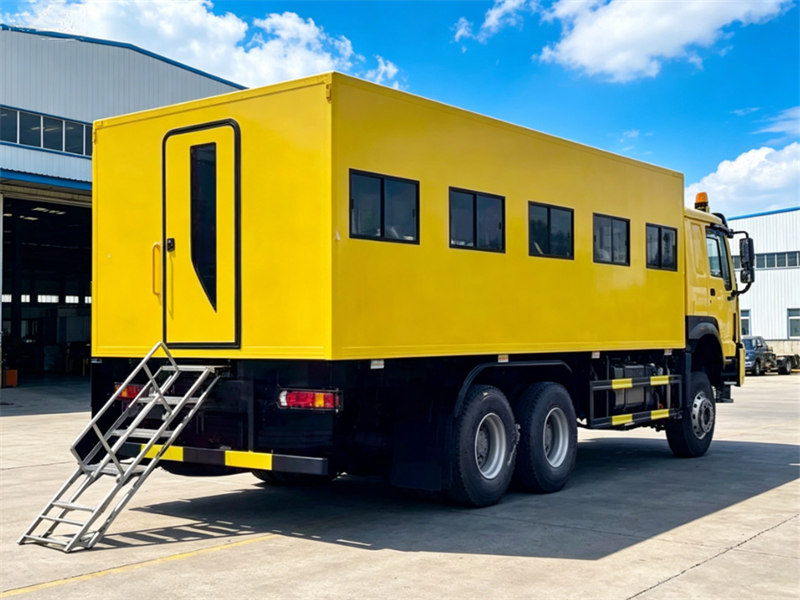

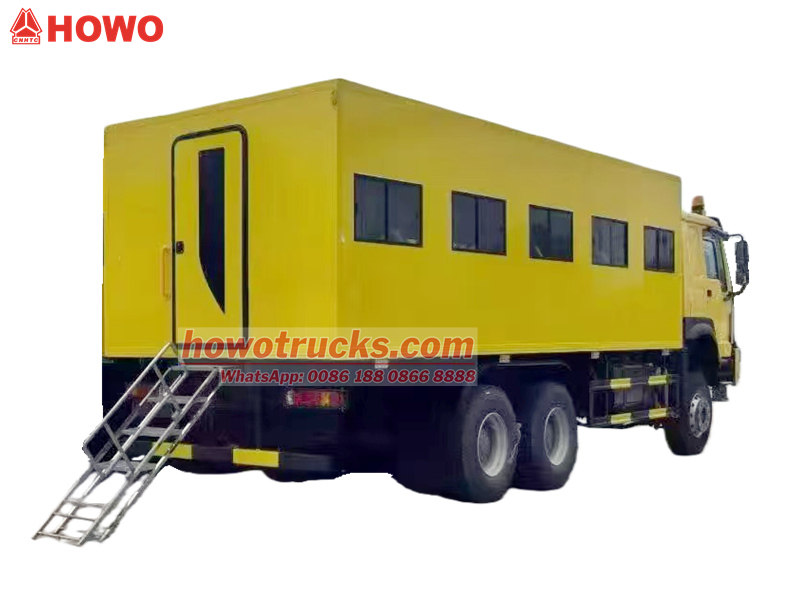

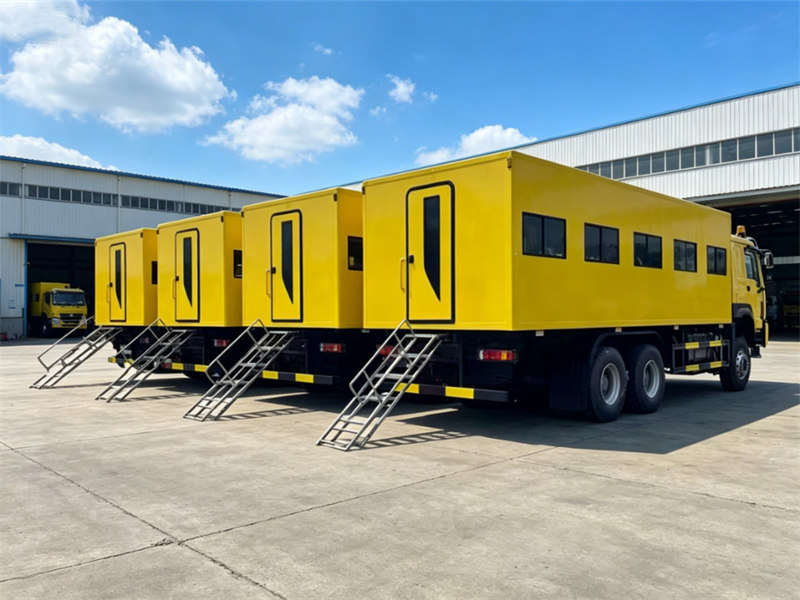

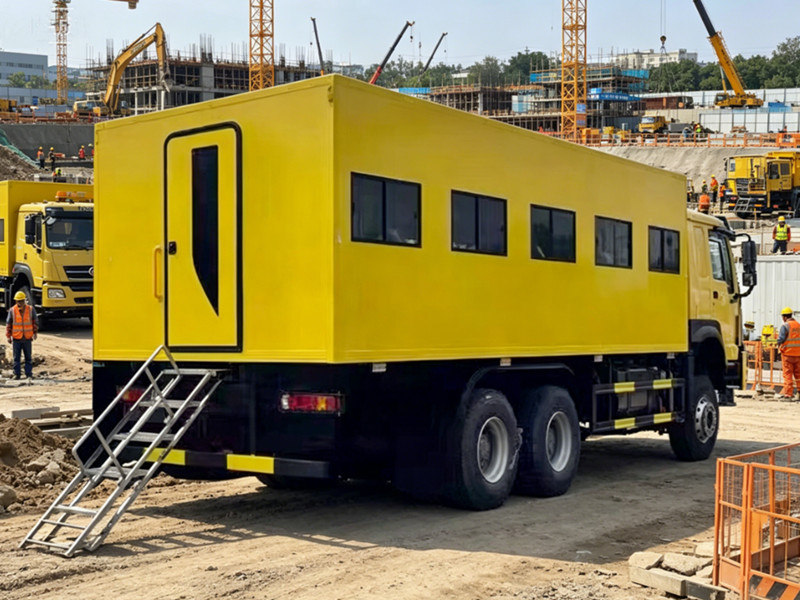

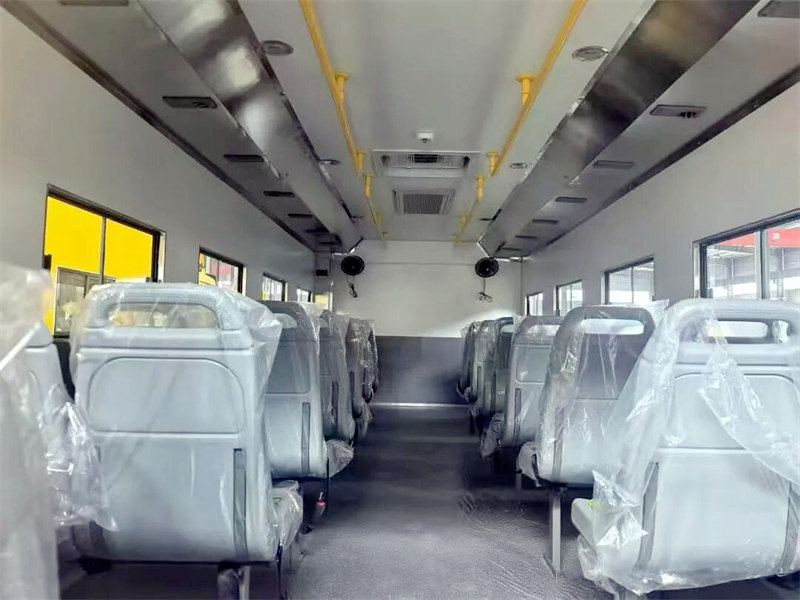

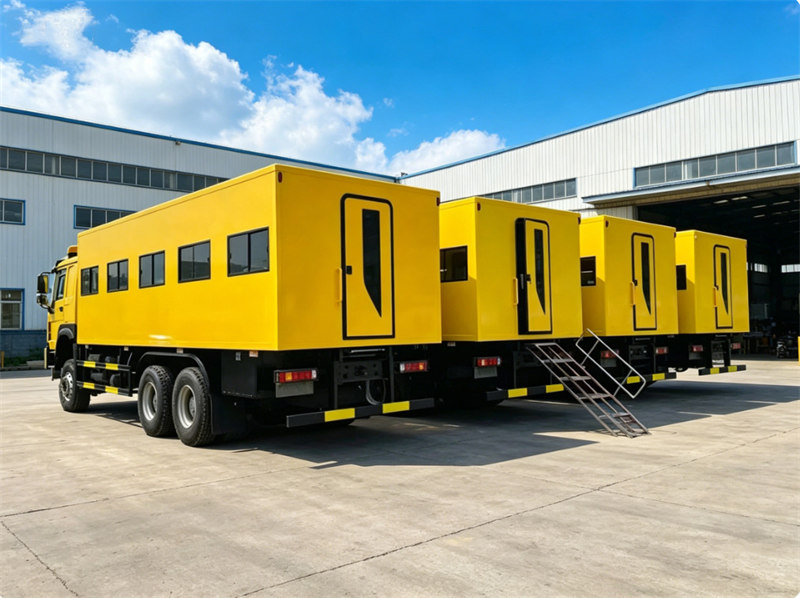

♦ Layout design: Multi-side observation windows + rear boarding door with foldable aluminum stair ladder for easy passenger entry & exit; foldable passenger seats are installed inside to carry large groups of staff steadily.
♦ Constant temperature central air conditioning covers the whole cabin, adjustable from 16℃ to 28℃, creating a cool environment under high-temperature outdoor operations and keeping crews warm in cold regions.
♦ The fully enclosed box body effectively isolates dust, wind and rain during outdoor cross-country travel, greatly improving crew comfort during long hours of field missions compared with open-cab cargo trucks.
3. High Load-Bearing Capacity & Robust Integrated Structure
♦ The complete vehicle’s solid sub-frame,supporting full-load transport of dozens of passengers plus small personal equipment, field tools and daily supplies at the same time.
♦ The overall vehicle dimension is 9600×2530×3350mm, with rational weight distribution matched to the heavy-duty 6×6 all-wheel-drive axle system.
♦ Every structural component including bumpers, side protective anti-collision yellow-black strips, roof warning lights and reinforced compartment walls is reinforced for frequent bumpy off-road travel.
✦ Ⅳ.Aplication For HOWO 6x6 Soldier Carrier Truck « « «

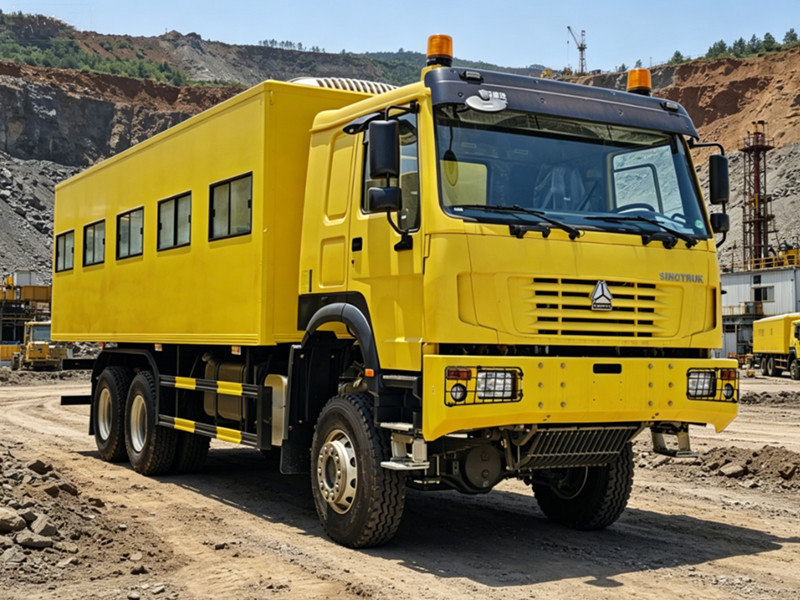

1. Remote Mining & Oilfield Field Crew Transportation
Mines and desert oilfields are covered with muddy, gravelly, bumpy unpaved roads that regular two-wheel drive trucks cannot pass. This all-terrain troop truck can shuttle back and forth between construction camps, drilling sites and mining zones, safely carrying construction workers, maintenance teams and patrol staff.
2. Emergency Disaster Rescue & Emergency Task Missions

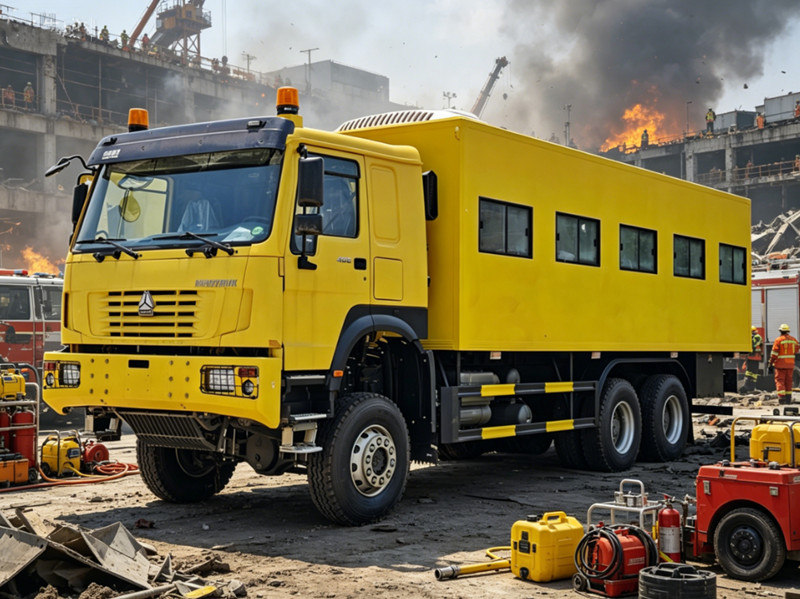

After floods, mudslides, earthquakes and other natural disasters, regional roads are damaged, muddy and blocked. Ordinary vehicles lose mobility, while this full-drive personnel truck can break through rugged disaster areas to transport rescue teams, firefighters and emergency volunteers.
3. Outdoor Engineering & Infrastructure Construction Projects
Large infrastructure projects (road construction, hydropower stations, remote railway engineering) are usually located in mountainous, remote areas far from cities. This troop carrier undertakes daily commuting for engineering teams between temporary living camps and construction work surfaces.
China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
