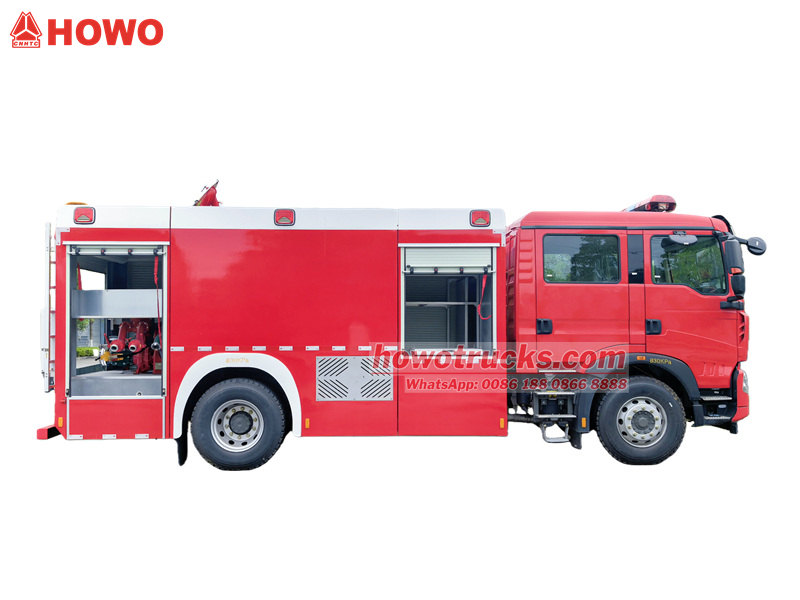

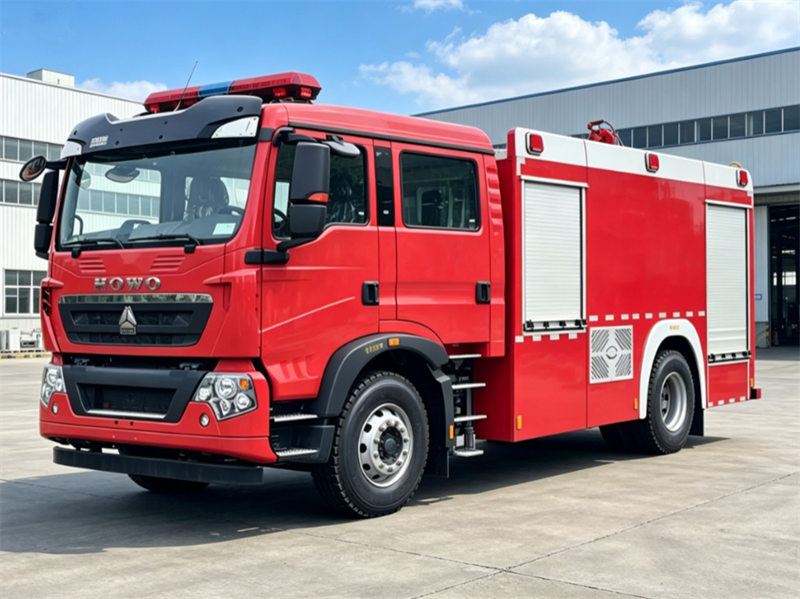

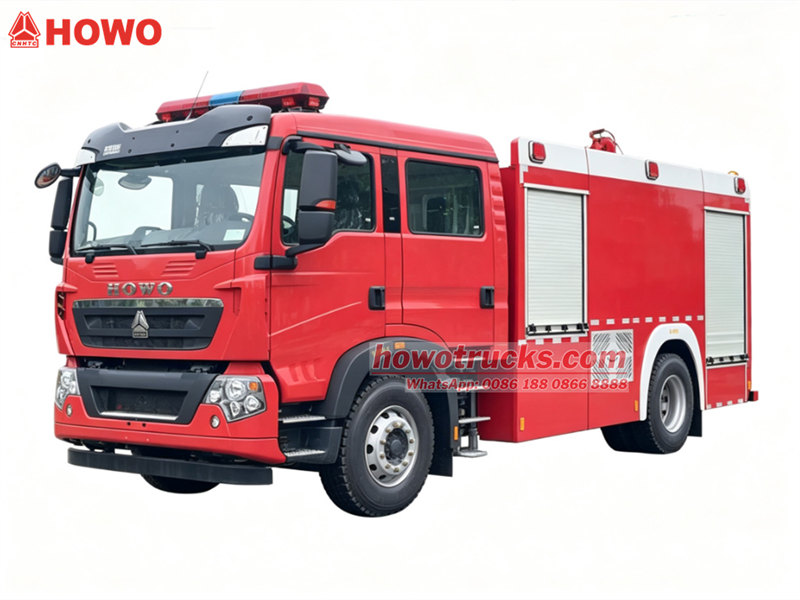

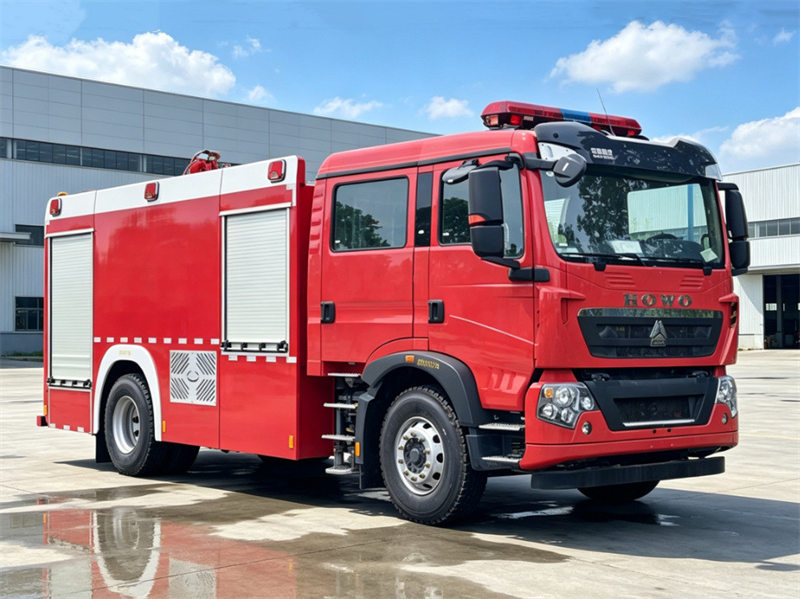

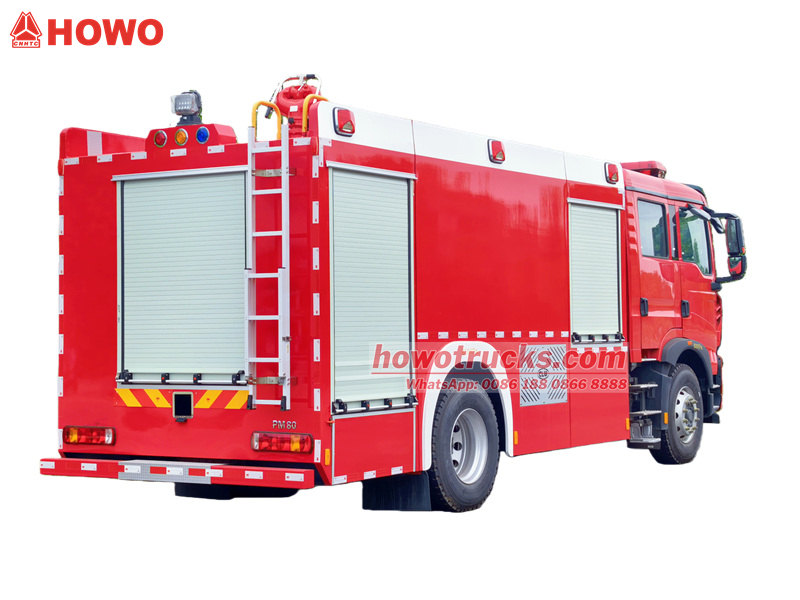

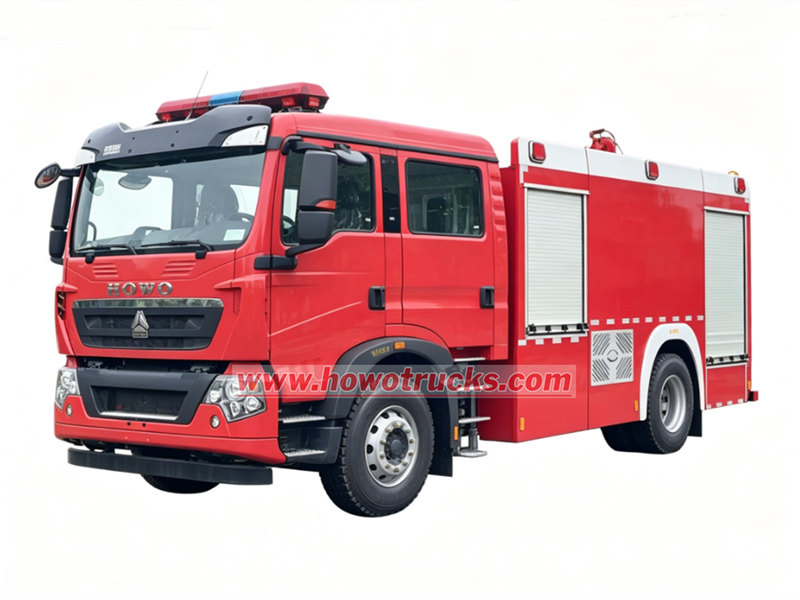

Built on the heavy duty HOWO TX double cab chassis, our 6 cubic meter water tender fire engine delivers robust performance. Powered by the high-output WP10.340E32 engine, it effortlessly navigates rough, uneven terrain for all emergency response missions.Fitted with a massive 4,000-liter water tank and industrial-grade fire pump, this fire truck boasts an impressive water jet throw range, plus a multi-language customizable control panel for intuitive operation. A full suite of optional add-ons is also available to tailor the vehicle to your unique firefighting requirements.
작업 능력 :
6000L+2000L객실 유형 :
Howo TX double cabin (2+4)구동 시스템 :
6x4휠베이스(mm) :
4350+1370엔진별 :
340 Hp / WP10.340E32기어박스 :
HW19710,10 forwards & 2 reverses앞 차축 (kg) :
7500뒷축 (kg) :
16000*2Built on the heavy duty HOWO TX double cab chassis, our 6 cubic meter water tender fire engine delivers robust performance. Powered by the high-output WP10.340E32 engine, it effortlessly navigates rough, uneven terrain for all emergency response missions.

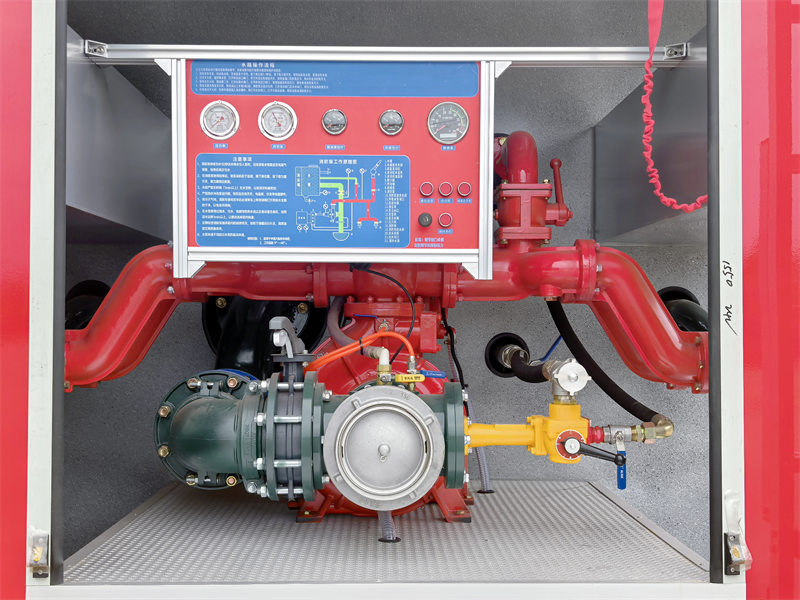

Fitted with a massive 4,000 liter water tank and industrial-grade fire pump, this fire truck boasts an impressive water jet throw range, plus a multi-language customizable control panel for intuitive operation. A full suite of optional add-ons is also available to tailor the vehicle to your unique firefighting requirements.
Its spacious standalone crew cab comfortably seats up to 5 firefighters, complete with factory-installed heating and air conditioning systems. No matter extreme hot or cold weather, your crew stays comfortable and focused while transporting vital fire suppression gear to the scene.
*HOWO heavy 6x4 fire foam truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model
WP model with 340HP and Euro 2,3
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
Optional CB10/40, CB10/60 also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
|
HOWO TX fire foam water truck |
||
|
Vehicle Model |
CSC52503MXF |
|
|
Main specifications |
Manufactory |
CS Trucks Group |
|

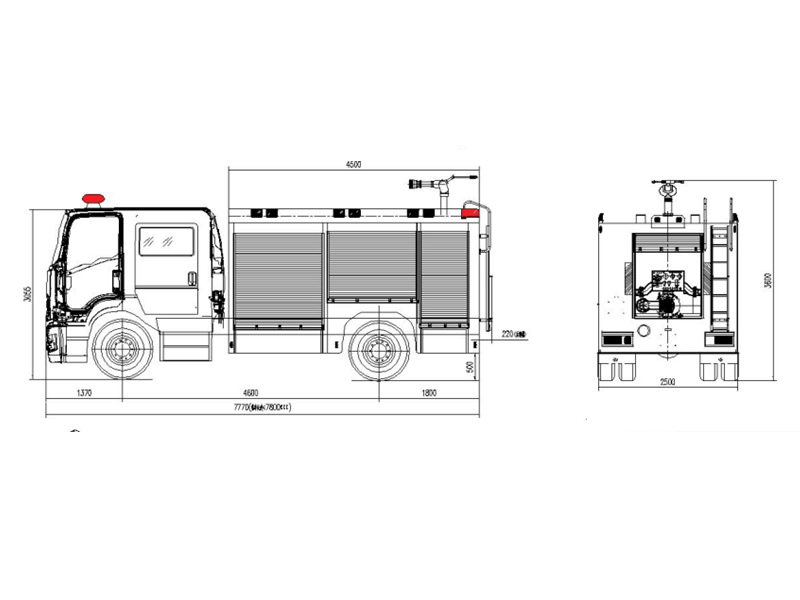

Overall dimension(L*W*H) |
8600×2530×3360mm |
|
|
GVW |
25000Kg |
|
|
Curb weight |
12500Kg |
|
|
Water tank volume |
4,000 liters |
|
|
Cabin |
Single cabin, 2seats,with Air conditioner, electronic windows, USB |
|
|
Independent cabin |
5 firefighter |
|
|
Wheel base |
4600mm |
|
|
Driving type |
4*2 |
|
|
Chiassis model |
HOWO |
|
|
Transmission |
HW 10-speed forward, 2 reverse |
|
|
Number of axles |
2 |
|
|
Tire specification |
12.00R20 18PR |
|
|
Number of Tires |
6 pcs with 1 spare tire |
|
|
Engine |
Engine model |
WP.10.340E32 |
|
Type of fuel |
Diesel |
|
|
Displacement/power |
9.839L / 340 Ps |
|
|
Maximum torque |
1600N·m |
|
|
Max speed |
95 Km/h |
|
|
Emission standard(TAS) |
EURO 3 |
|
|
Fire performance |
Water tank capacity |
4000L |
|
Fire pump |
China Top brand |
|
|
Model: CB10/60 |
||
|
Flow rate:60L/S |
||
|
Fire monitor |
China top brand |
|
|
Model:PL8/48 |
||
|
Working pressure: 1.0MPa |
||
|
Flow:48L/S |
||
|
Water jet distance:≥65m |
||
|
Rotation angle: 360° horizontally, -45° to 70° in pitch |
||
|
Fire pump Input |
1 unit, diameter: 100mm |
|
|
Fire pump Outlet |
2 units, diameter: 65mm 2 units,diameter: 85mm |
|
|
Standard configurations |
Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose. |
|
CS Group R & D Department for design:
100% customized appearance, design the water + foam tank capacity, fire fighting tools storage box, also the whole truck size can be customized.

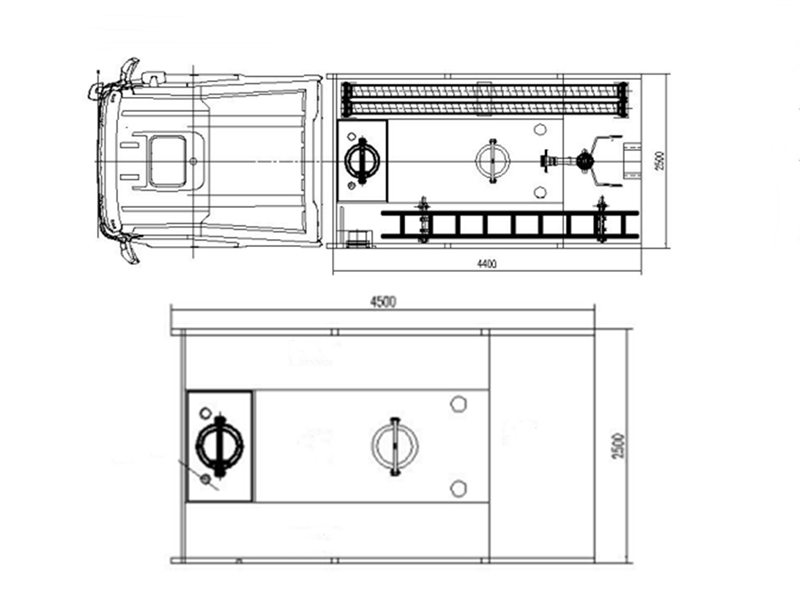

Tank System: The front part is the equipment room, where various firefighting equipment (such as fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.) are stored for easy access. In the middle, there is a 6CBM carbon steel water tank and a 2CBM foam tank, both equipped with manholes on top.
♦ Highly Effective at Extinguishing Class B Fires:
--- Foam fire trucks generate and spray air foam specifically designed to extinguish Class B fires caused by flammable liquids (such as gasoline, diesel, grease, and organic solvents).
---The foam layer effectively covers the liquid surface, isolating oxygen and inhibiting the volatilization of flammable vapors—a crucial capability that ordinary water cannot replace.
♦ Strong Preventing and Resistance to Reignition:
--- The foam forms a durable and stable covering layer on the surface of the burning material.
--- It not only extinguishes the fire quickly but also adheres for a long time, effectively preventing reignition caused by temperature rise or lingering embers, greatly improving the thoroughness of fire suppression.
♦ Rapid Extinguishing and Effective Cooling:
The foam mixture has higher adhesiveness and covering power than water, rapidly spreading across the burning surface to form an insulating layer.
|

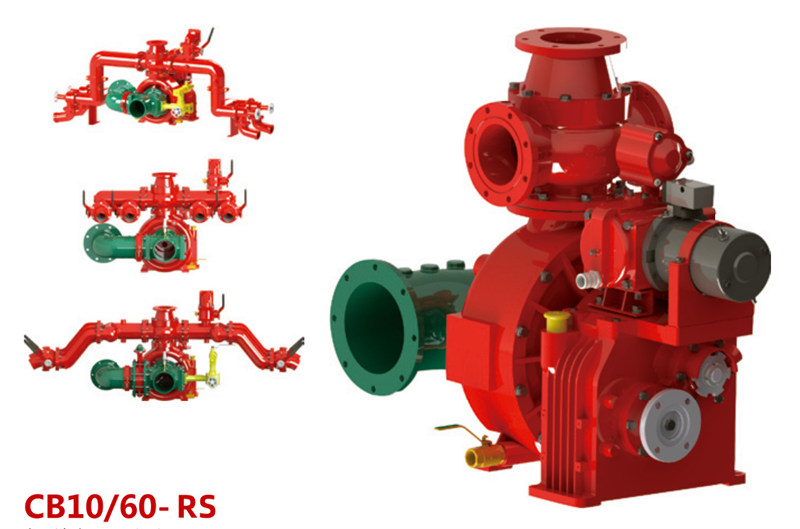

Fire pump Model |
Flux（L/s） |
Pressure（MPa） |
Pump shaft speed（rpm） |
Power(kw) |
Suction depth(m) |
Max working pressure |
|
CB10/60-RS |
60 |
1.0 |
3200±50r/min |
99.71 |
3 |
1.082MPa |
|
42 |
1.3 |
3528±50r/min |
109.18 |
- |
||
|
30 |
1.0 |
3326±50r/min |
- |
7 |
- |

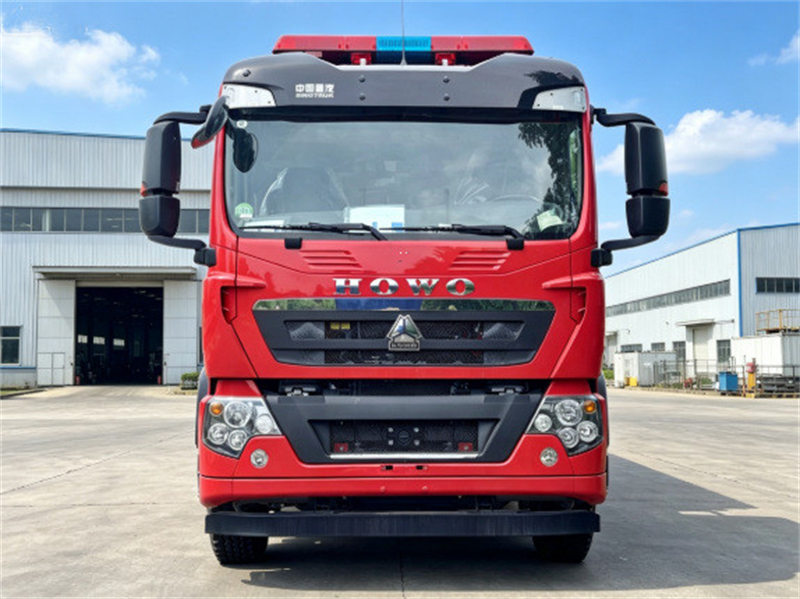

1.HOWO TX Chassis with Powerful, Reliable Powertrain:
♦ Built for tough cross-country emergency operations, the 4×2 HOWO TX chassis delivers unbeatable durability and mobility.
♦ Powered by WP10.340E32 diesel engine, outputting 340 hp and peak torque of 1600 N·m, maximum speed hits 95 km/h to reach fire scenes rapidly.
♦ Matched with HW 10-forward/2-reverse manual transmission, stable power delivery for rough, uneven rural and suburban road conditions.
♦ Heavy-load rated design with GVW up to 25,000 kg, fitted with 12.00R20 18PR heavy-duty tires (6 tires + 1 spare) to bear full tank and firefighting gear weight.
♦ 4600mm wheelbase two-axle layout balances driving stability and flexible maneuverability for narrow town roads.
2.High-Performance Fire Suppression System:
♦ Equipped with top-tier domestic firefighting pump & monitor assembly to deliver strong fire-fighting capacity:
♦ Large 4,000-liter integrated water tank stores sufficient water for sustained on-site fire suppression

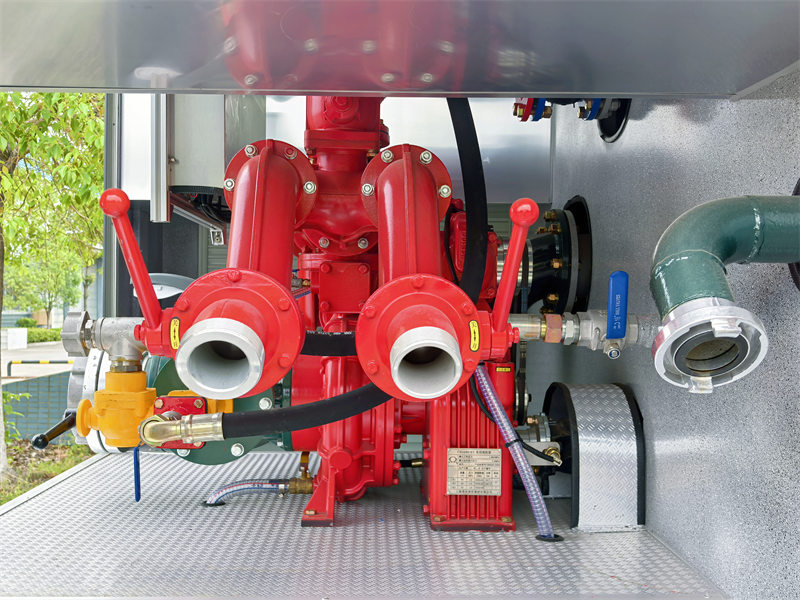

♦ CB10/60 high-flow fire pump with 60L/s rated flow, paired with PL8/48 fire monitor offering 48L/s water output
♦ Outstanding jet performance: water projection distance ≥65 meters; monitor supports full 360° horizontal rotation & -45°~70° vertical pitching angle for multi-angle fire targeting.

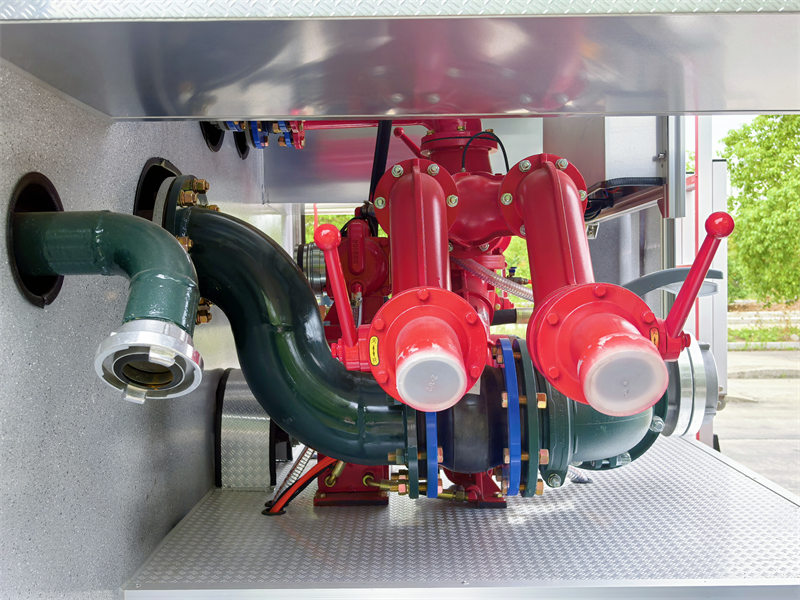

♦ Matching international firefighting hoses; equipped with one 100mm pump inlet, dual 65mm and dual 85mm pump outlets for multi-line water supply.

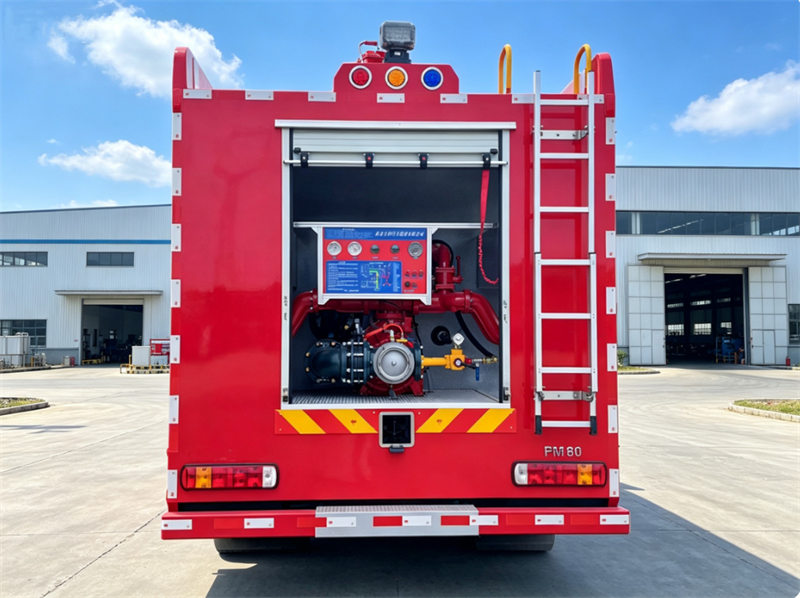

♦ Comes with a 30m black high-pressure hose reel as standard, plus a tilting rear equipment compartment (45° upward tilt) for easy access to hoses, nozzles and auxiliary tools.
3.Spacious Dual Crew Cab with Comfort:
♦ Dual independent cabin design accommodates full fire teams while maximizing onboard gear storage space.
♦ Dual cabin layout: front single 2-seat driving cab with AC, electric windows and USB charging ports for the driver crew.
♦ Separate rear independent crew cabin with seating for up to 5 additional firefighters, forming a full 7-person response team.
♦ All-weather climate control air conditioning installed in both cabins, keeping crew comfortable in extreme hot or cold working environments.

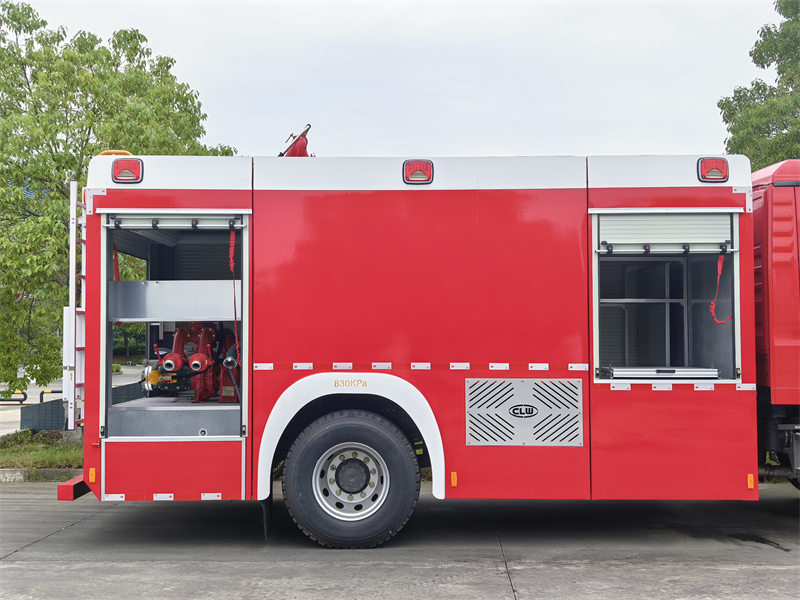

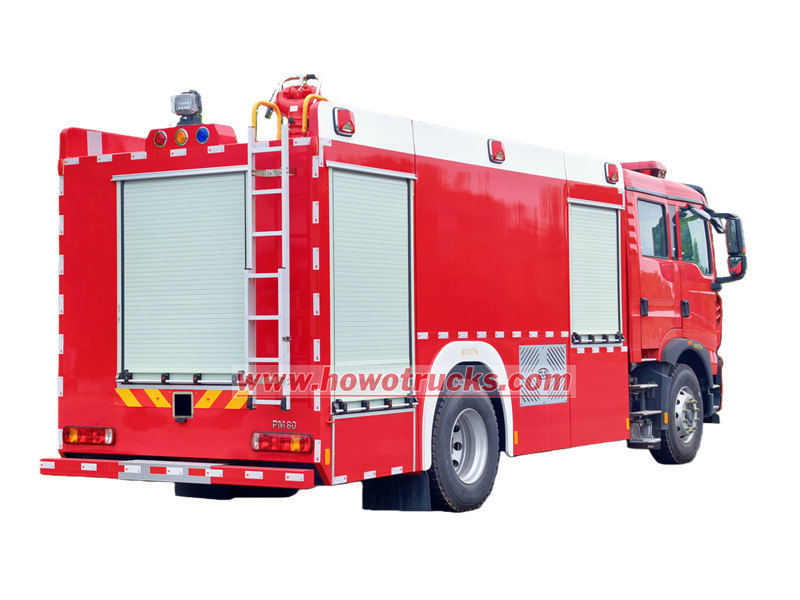

♦ Full side rolling shutter storage compartments on the vehicle body, offering ample enclosed space to neatly stow all fire hoses, tools and auxiliary equipment.

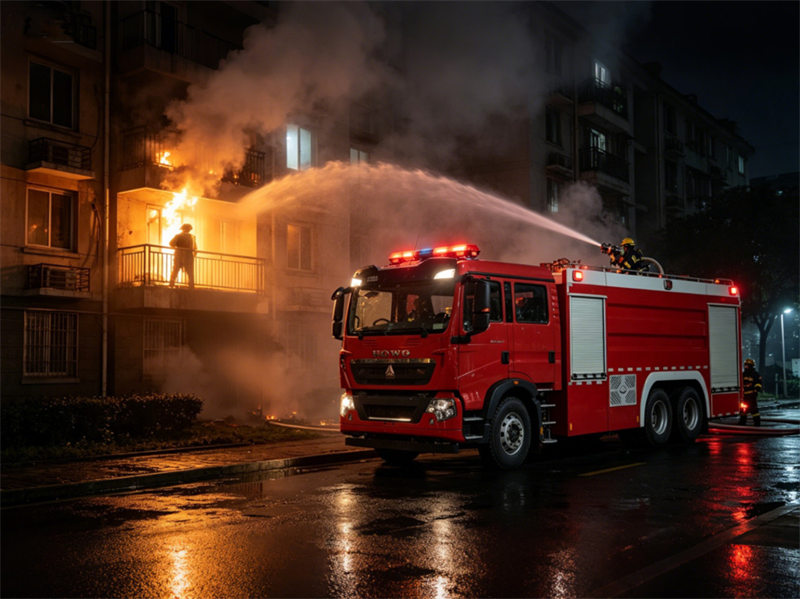

1. Residential Building Fire Intervention：
This HOWO foam water truck is suitable for apartment and residential area fires, especially when fires break out from balconies, windows or household combustibles. Its PL8/48 fire monitor can deliver a water/foam flow of 48 L/s with a projection distance of ≥65 meters, allowing firefighters to suppress fires from a safe distance while the 360° horizontal rotation and -45° to 70° pitching angle support accurate targeting at different floor levels.
2. Chemical Storage and Liquid Fire Control：
For industrial parks, small chemical warehouses or tank area accidents, the foam function becomes critical. Compared with water only, foam can smother liquid fires, suppress vapor release and reduce the risk of reignition. The CB10/60 fire pump provides a rated flow of 60 L/s, while the separate foam system helps cover flammable liquid surfaces and stabilize the fire scene before further rescue operations.
3. Road Accident and Vehicle Fire Response：
In highway or urban traffic accidents involving vehicle fires, fuel spills or electric vehicle fires, this truck can be deployed rapidly with foam coverage capability. The 4,000-liter water tank combined with foam concentrate supply allows continuous initial attack, cooling and fire containment. Its 4×2 chassis, 95 km/h maximum speed and heavy-duty tires support quick arrival even under poor road or emergency traffic conditions.
